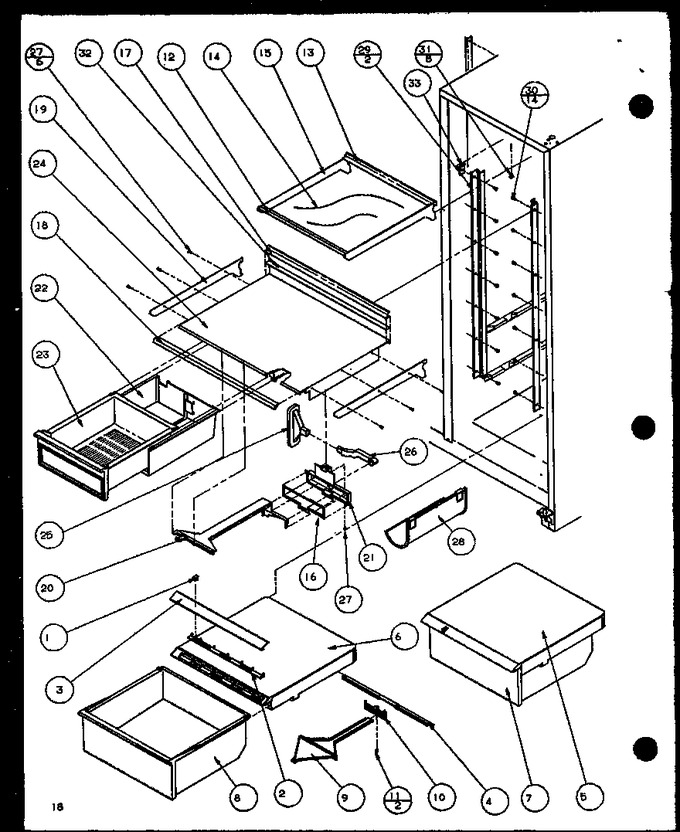

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 2 | D7587705 | Slide Humidity |
|
- | |||||
| 3 | D7616618 | Trim |
|
- | |||||
| 4 | D7764103 | Damper, Humidity Center |
|
- | |||||
| 5 | D7796401 | Crisper Top |
|
- | |||||
| 6 | D7796402 | Crisper Top |
|
- | |||||
| 7 | D7797801 | Crisper Pan |
|
- | |||||
| 8 | D7797802 | Crisper Pan |
|
- | |||||
| 9 | D7782203 | Slide Crisper Cont. |
|
- | |||||
| 10 | D7807601 | Support |
|
- | |||||
| 11 | M0230017 | Screw,tc |
|
- | |||||
| 12 | C8913501 | Trim, Shelf A |
|
- | |||||
| 13 | C8913601 | Trim, Shelf |
|
- | |||||
| 14 | D7421286 | Glass Shelf |
|
- | |||||
| 15 | D7871005 | Frame Cont. Shelf |
|
- | |||||
| 16 | A3030305 | Gasket-per Ft |
|
- | |||||
| 17 | C8831808 | Trim Shelf |
|
- | |||||
| 18 | C8913530 | Trim, Front Shelf, Mk |
|
- | |||||
| 19 | D7862949 | Side Rail |
|
- | |||||
| 19 | D7862934 | Side Rail |
|
- | |||||
| 20 | D7697903 | M.k. Control Slide |
|
- | |||||
| 21 | D7698003 | Housing M.k. Slide |
|
- | |||||
| 22 | D7698105 | Sleeve, Meat Keeper |
|
- | |||||
| 23 | D7698314 | Meat Pan |
|
- | |||||
| 24 | D7698210 | Top, M.k |
|
- | |||||
| 25 | D7873601 | Grommet, Mk |
|
- | |||||
| 26 | D7788101 | Duct, M.k. Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | D7547604 | Bottle Rack |
|
- | |||||
| 29 | D7789801 | Ladder, Cantilever |
|
- | |||||
| 30 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 31 | M0580007 | Grommet, Screw |
|
- | |||||
| 32 | M0275163 | Tape Per Roll |
|
- | |||||
| 33 | C8992301 | Bracket |
|
- | |||||
| NI | D7872701 | Crisper Top Assy |
|
- | |||||
| NI | D7871801 | Glass Shelf Assembly |
|
- | |||||
| NI | D7872702 | Crisper Top Assy |
|
- |
