Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3076901 Plug-button Special Order $ 5.70

2 A3080001 Plug, Button (blk) Appelez-nous -
3 C8742401 Assy, Roller Bracket Appelez-nous -
4 M0286708 Nut, Speed Special Order $ 47.85

5 M0520102 Roller Appelez-nous -
6 M1205302 Rivet Special Order $ 5.85

7 M1200004 Cotter Pin K Appelez-nous -
8 M1200202 Pin K Appelez-nous -
9 B8318803 Fill Tube Assy Appelez-nous -
10 C8971903 Tunnel, Heat Exchanger Appelez-nous -
11 D7797401 Drain Tube Appelez-nous -
12 D7787802 Tank, Coil Water Appelez-nous -
13 M0102303 Clamp Appelez-nous -
14 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40

16 M0102327 Clamp Appelez-nous -
17 M0204339 Screw Bolt K Appelez-nous -
NI C8956101 Assy, Roller Bracket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

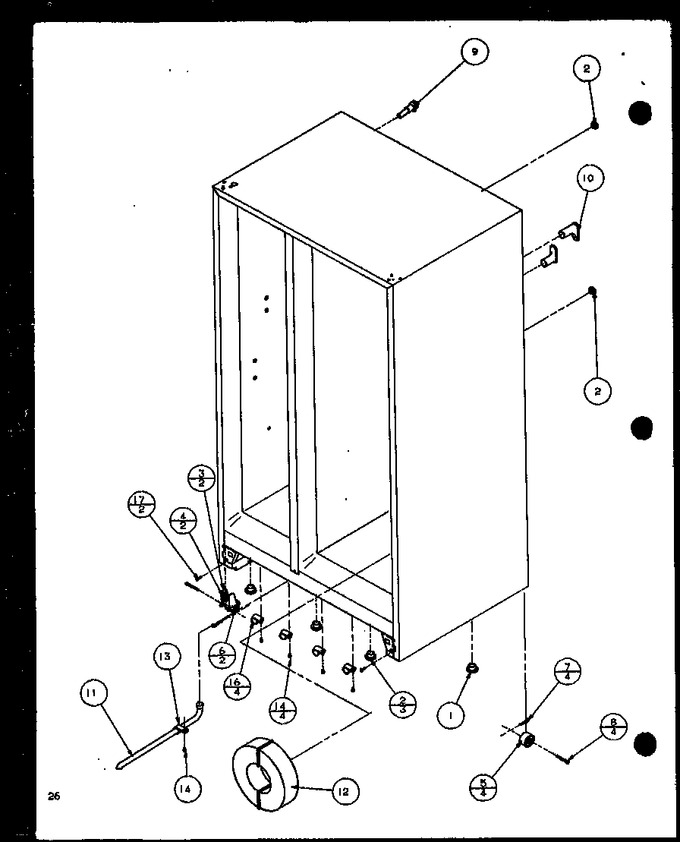

Diagram for SCD19J (BOM: P1116701W)
