SELECT A DIAGRAM
New Model Search:

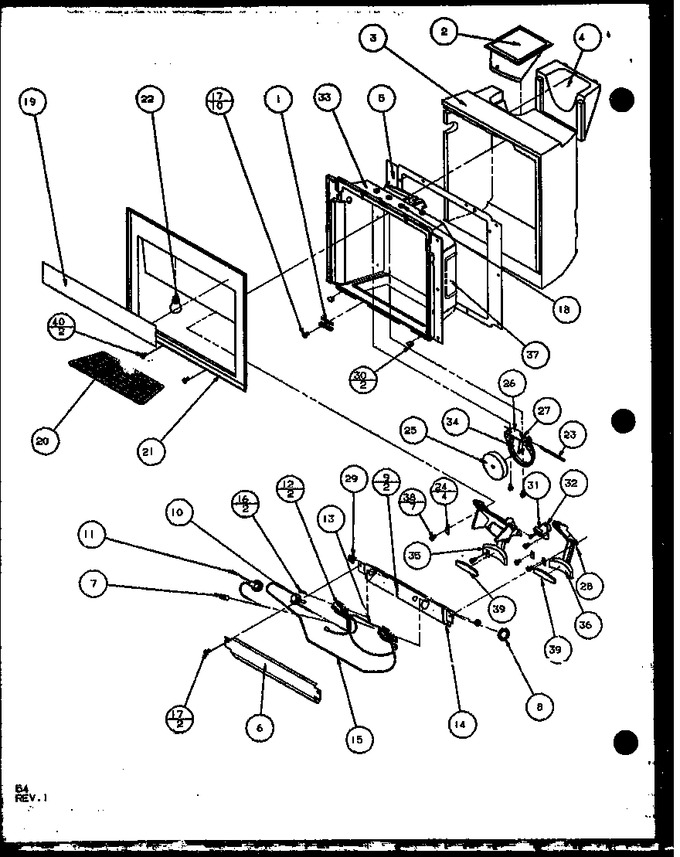

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8992901 | Clip |
|
- | |||||
| 2 | D7750702 | Ice, Chute |
|
- | |||||
| 3 | D7789601 | Insul I & W Cavity |
|
- | |||||
| 4 | D7790901 | Insul I & W Cavity |
|
- | |||||
| 5 | D7791001 | Gasket-cavity |
|
- | |||||
| 6 | D7795901 | Cover Elect Brkt |
|
- | |||||
| 7 | B5778702 | Sleeve |
|
- | |||||
| 8 | B8382701 | Nut |
|
- | |||||
| 9 | B8386801 | Insulation |
|
- | |||||
| 10 | C8967501 | Switch, Light |
|
- | |||||
| 11 | C8967601 | Socket |
|
- | |||||
| 12 | C8972701 | Kit, Limit Switch |
|
- | |||||
| 13 | D7383423 | Jumper Wire |
|
- | |||||
| 14 | D7750501 | Bracket, Elect. Mtg |
|
- | |||||
| 15 | D7797201 | Harness |
|
- | |||||
| 16 | M0234008 | Screw |
|
- | |||||
| 17 | M0216517 | Screw |
|
- | |||||
| 18 | M0274701 | Retainer, Ring |
|
- | |||||
| 19 | C8975104 | Thinplate |
|
- | |||||
| 20 | D7750602 | Grille Sump (black) |
|
- | |||||
| 21 | D7877506 | Facade, Dispenser, Black |
|
- | |||||
| 22 | W10857122 | Light Bulb (Replaces: M0360001) |
|
$ 14.52 | |||||
| 23 | A1061501 | Pin, Chute Door |
|
- | |||||
| 24 | A1061601 | Retainer, Ice Arm |
|
- | |||||
| 25 | B8380701 | Insulation, Chute Door |
|
- | |||||
| 26 | B8380801 | Brkt-chute Door |
|
- | |||||
| 27 | B8380901 | Spring,chute Door |
|
$ 7.18 | |||||
| 28 | B8385401 | Spring, Return |
|
- | |||||
| 29 | B5733302 | Clip, Ground |
|
- | |||||
| 30 | B8390301 | Clip, Facade |
|
- | |||||
| 31 | C8972501 | Retainer Door Delay |
|
- | |||||
| 32 | C8973601 | Delay, Door |
|
- | |||||
| 33 | D7750002 | Cavity Dispenser Blk |
|
- | |||||
| 34 | D7750101 | Kit,chute Dr No.3 |
|
- | |||||
| 35 | D7750301 | Arm Ice Actuater |
|
- | |||||
| 36 | D7750401 | Arm,water Actuater |
|
- | |||||
| 37 | D7762701 | Heater, Cavity |
|
- | |||||
| 38 | M0211116 | Screw, Sm |
|
- | |||||
| 40 | M0219601 | Screw |
|
- | |||||
| NI | R0156692 | Kit,chute Dr No.3 |
|
- |
