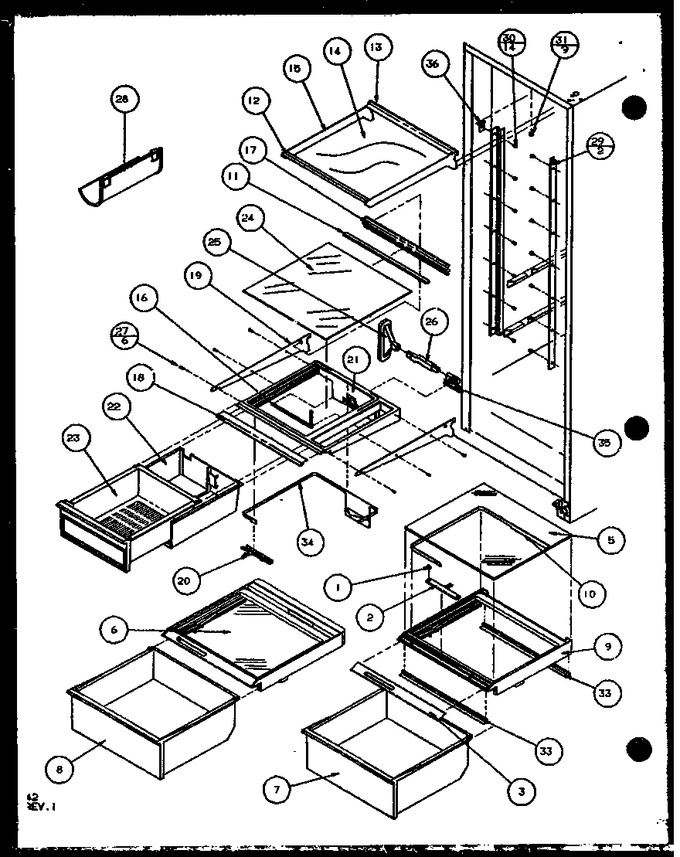

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038401		Knob, Crisper Control		Appelez-nous	-
2	D7860601		Slide, Crisper Control		Appelez-nous	-
3	D7616637		Trim Front Crisper A		Appelez-nous	-
5	D7421275		Glass Crisper Top		Appelez-nous	-
6	D7421272		Glass Crisper Top		Appelez-nous	-
7	D7782101		Fruit Pan		Appelez-nous	-
8	D7782102		Crisper Pan		Appelez-nous	-
9	D7853206		Frame Crisper		Appelez-nous	-
9	D7853204		Frame Crisper		Appelez-nous	-
10	D7859601		Band Crisper Control		Appelez-nous	-
11	10043102		Ext. Rear Glass		Appelez-nous	-
12	C8913511		Trim, Front Shelf		Appelez-nous	-
13	C8913604		Trim, Shelf Rear		Appelez-nous	-
14	D7421288		Glass Shelf		Appelez-nous	-
14	D7421287		Glass Shelf		Appelez-nous	-
15	D7871009		Frame-cantilever Shelf		Appelez-nous	-
15	D7871008		Frame Cont. Shelf		Appelez-nous	-
16	A3263905		Gasket-per Ft		Appelez-nous	-
17	C8990402		Trim, Rear Shelf		Appelez-nous	-
18	C8913533		Trim, Front Shelf		Appelez-nous	-
19	D7862924		Blank Side Rail		Appelez-nous	-
19	D7862925		Blank Side Rail (silver)		Appelez-nous	-
20	D7859401		Slide-mk Control		Appelez-nous	-
21	D7857001		Frame M.k.		Appelez-nous	-
22	D7698105		Sleeve, Meat Keeper		Appelez-nous	-
23	D7698314		Meat Pan		Appelez-nous	-
24	D7421267		Glass M.k. Shelf		Appelez-nous	-
25	D7873601		Grommet, Mk		Appelez-nous	-
26	D7869001		Xduct M.k. Air		Appelez-nous	-
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	D7547604		Bottle Rack		Appelez-nous	-
29	D7789801		Ladder, Cantilever		Appelez-nous	-
30	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
31	M0580007		Grommet, Screw		Appelez-nous	-
33	D7718404		Seal, Crisper Rear		Appelez-nous	-
33	D7718403		Seal, Crisper Front		Appelez-nous	-
34	D7859501		Band M.k. Control		Appelez-nous	-
35	D7869102		Ext. Air Duct		Appelez-nous	-
36	C8992301		Bracket		Appelez-nous	-
NI	D7871807		Glass Shelf Assembly		Appelez-nous	-
NI	R0179115		Glass Crisper Top Assy		Appelez-nous	-
NI	R0179121		Glass Crisper Top Assy		Appelez-nous	-
