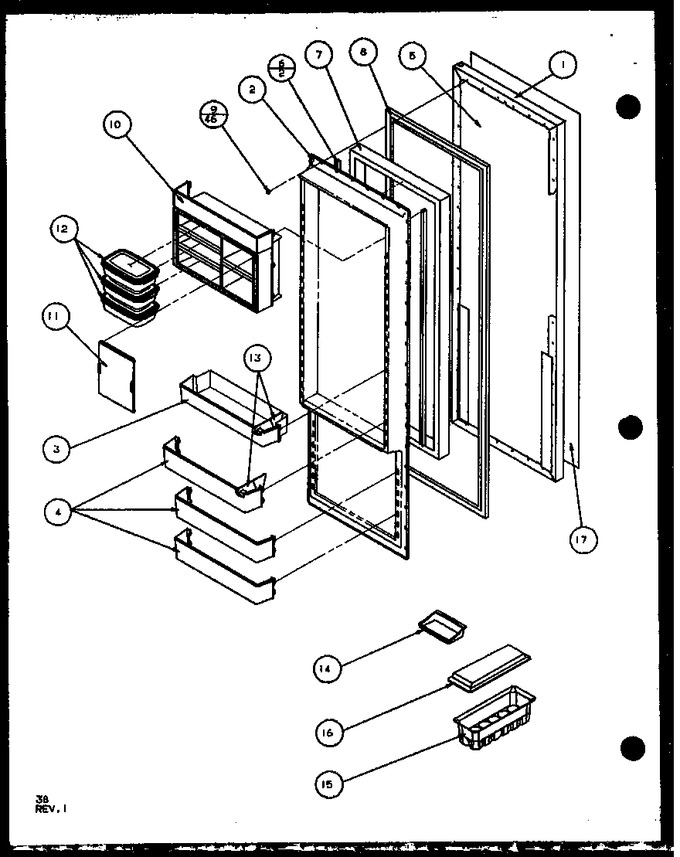

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7882702		Door Ref W.		Appelez-nous	-
1	D7882704		Door Ref L		Appelez-nous	-
1	D7882703		Door Ref G		Appelez-nous	-
2	D7828203		Inner Door, Ref		Appelez-nous	-
3	D7783301		Bucket, Ref Door		Appelez-nous	-
4	67003697		Shelf, Ref Door   (Replaces: D7783401)				$ 82.08
5	B0566723		Insulation		Appelez-nous	-
6	C8987104		Seal, Door Dike		Appelez-nous	-
7	B0523562		Insul. By The Ft.		Appelez-nous	-
8	10104401		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219717		Screw		Appelez-nous	-
10	D7781203		Dairy Module		Appelez-nous	-
11	D7781301		Door Dairy		Appelez-nous	-
12	D7806404		Container Sec. Ser.		Appelez-nous	-
13	D7814602		Snugger		Appelez-nous	-
14	D3799802		Butter Tray		Appelez-nous	-
15	D7695603		Egg Bucket A-v		Appelez-nous	-
16	D7805902		Cover, Egg Bucket		Appelez-nous	-
17	C8823637		Panel Black Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
