SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice Bucket Auger And Ice Maker Parts


07 - Ice Maker/control Assy


08 - Ice/water Cavity And Elec Bracket Assy


09 - Machine Compartment


10 - Ref Door And Accessories


11 - Ref/fz Shelves, Lights, And Hinges


12 - Shelf, Crisper Assemblies & Toe Grill

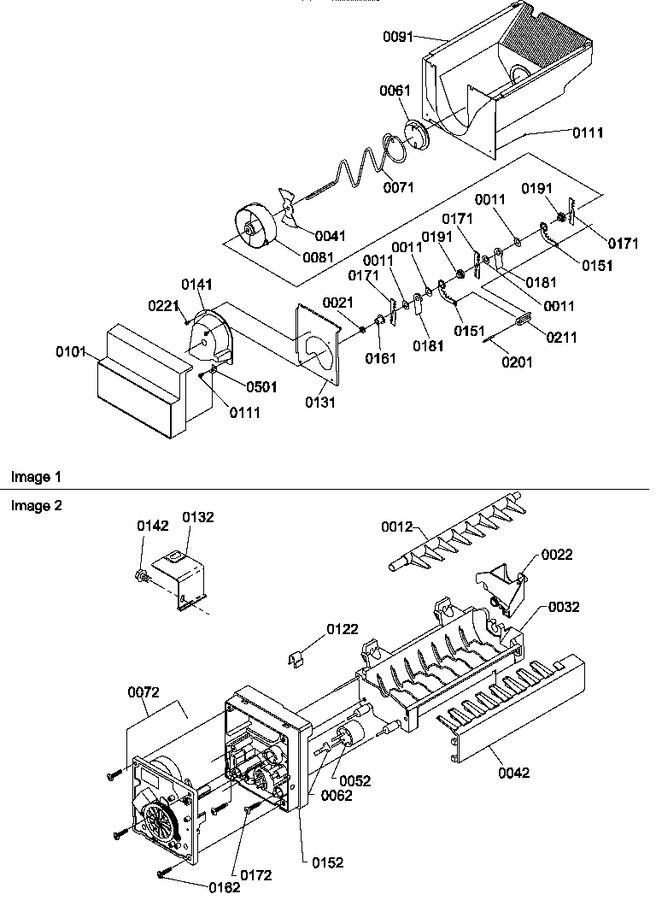

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10275101		Washer, Waved		Appelez-nous	-
12	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
21	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 8.06
22	WP628356		Cup, Water Fill/bearing   (Replaces: R0156839)				$ 53.75
32	D7824706Q		Assy, Mold & Heater   (Replaces: R0156669)			Immediately	$ 167.35
41	10113801		Bar, Crsh Ice Bucket				$ 4.96
42	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
52	WP627985		N/a See Notes-thermostat   (Replaces: R0161060)				$ 114.64
61	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 29.01
62	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
71	10114401		Agitator, Ice				$ 107.74
72	W10190935		Module & Mtr Assy,120v/60hz   (Replaces: R0167203)			Immediately	$ 110.07
81	10114703		Wheel, Crsh Ice		Appelez-nous	-
91	10111905		Bucket, Crushed Ice				$ 104.60
101	10870901		Front-ci Bucket		Appelez-nous	-
111	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
122	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
131	10115001		Front, Ice Crusher				$ 25.55
132	B8391802		Bracket, I/m		Appelez-nous	-
141	10114002		Cover, Blade		Appelez-nous	-
142	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
151	10114601		Blade, Static		Appelez-nous	-
152	WP2195914		Support   (Replaces: R0183121)				$ 109.80
161	10113901		Spacer, Cover		Appelez-nous	-
162	R0186041		Screw		Appelez-nous	-
171	10114501		Blade, Rotating		Appelez-nous	-
172	R0186040		Screw		Appelez-nous	-
181	10275201		Damper, Ice		Appelez-nous	-
191	10114301		Washer Stepped		Appelez-nous	-
201	M1200108		Pin, Roll		Appelez-nous	-
211	10114101		Anchor, Blade		Appelez-nous	-
221	M0231704		Screw, Tf		Appelez-nous	-
501	10894901		Brkt, Cover Mtg.		Appelez-nous	-
NI	WP12740302		Crushed Ice Agitator Assy   (Replaces: R0156803)				$ 529.58
NI	10834701		Label, Im		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
