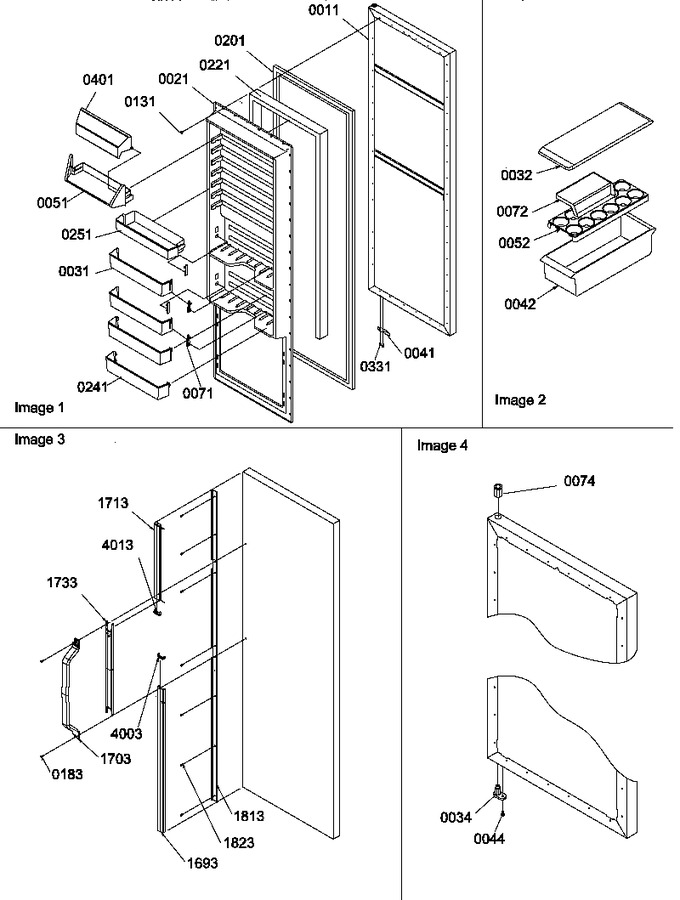

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881301W		Assy Ref. Door		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	10520405		Shelf, Chiller				$ 31.15
32	10436404		Lid, Utility				$ 60.85
34	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
41	C8972403		Stop, Door (blk)		Appelez-nous	-
42	10423129		Bin-utility		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	12083301		Shelf, Dairy		Appelez-nous	-
52	10436506		Tray, Egg				$ 8.28
71	10202001		Clip, Retainer		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
74	10961001		Bushing, Door (wht)		Appelez-nous	-
131	M0219730		Screw				$ 7.65
183	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
201	10359708		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521812		Shelf-ref Door		Appelez-nous	-
251	12083401		Bucket, Ref Door		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527307		Door, Dairy		Appelez-nous	-
1693	10810512		Trim, Bottom Door E		Appelez-nous	-
1703	12139306		Handle, Door (black)		Appelez-nous	-
1713	10810312		Trim-e Top Ref Dr		Appelez-nous	-
1733	10810403		Trim- E Ctr Dr		Appelez-nous	-
1813	10852214		Retainer-ref Trim		Appelez-nous	-
1823	M0216517		Screw		Appelez-nous	-
4003	10953115		Insert, Trim (black)		Appelez-nous	-
4013	10953116		Insert, Trim (black)		Appelez-nous	-
