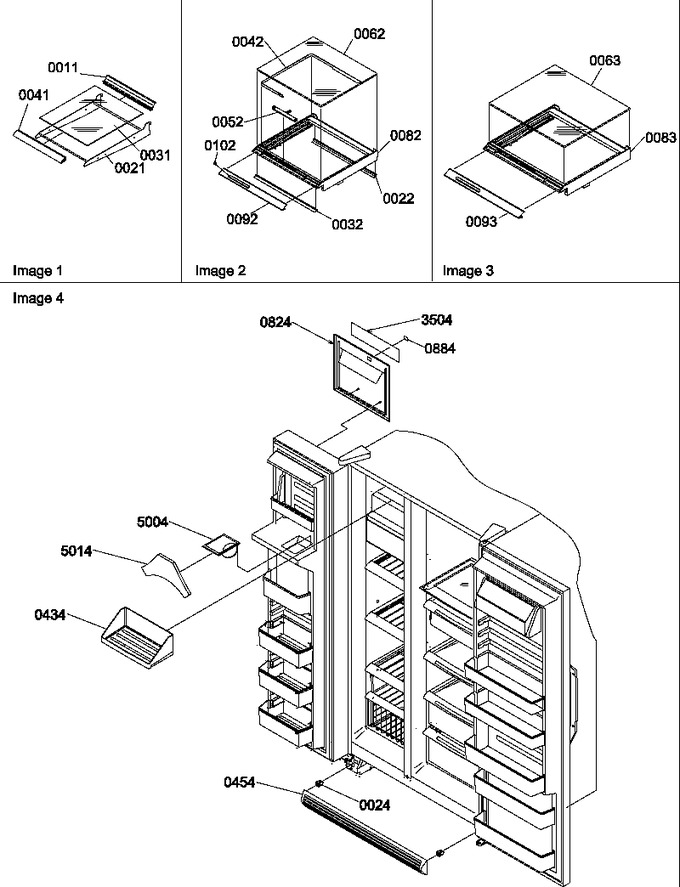

12 - Shelf, Crisper Assemblies & Toe Grill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10946011		Extr-rear Shelf		Appelez-nous	-
21	10875306		Frame, Glass Shelf		Appelez-nous	-
22	D7718406		Seal, Meat Pan		Appelez-nous	-
24	M0117303		Clip, Grille				$ 5.65
31	10370064		Glass-shelf		Appelez-nous	-
32	10523401		Seal, Crisper Front		Appelez-nous	-
41	10459910		Extr., Shelf Frt		Appelez-nous	-
42	10882901		Band, Crisper		Appelez-nous	-
52	D7860603		Slide		Appelez-nous	-
62	10370027		Glass Shelf		Appelez-nous	-
63	10370030		Glass Shelf		Appelez-nous	-
82	10469609		Frame, Crisper		Appelez-nous	-
83	10469608		Frame, Crisper		Appelez-nous	-
92	10873914		Trim-crisp Fr		Appelez-nous	-
93	10873909		Trim-crisp Front		Appelez-nous	-
102	10038402		Knob - Crisper		Appelez-nous	-
434	10870801		Shelf, Ice Cream		Appelez-nous	-
454	12321806		Kit, Toe Grille (blk)		Appelez-nous	-
824	10810803		Facade-e Disp.		Appelez-nous	-
884	12043808		Cap-black Switch		Appelez-nous	-
3504	12188106		Insert, Facade		Appelez-nous	-
5004	10504101		Chute, Ice		Appelez-nous	-
5014	12044501		Gasket-ice Chute		Appelez-nous	-
