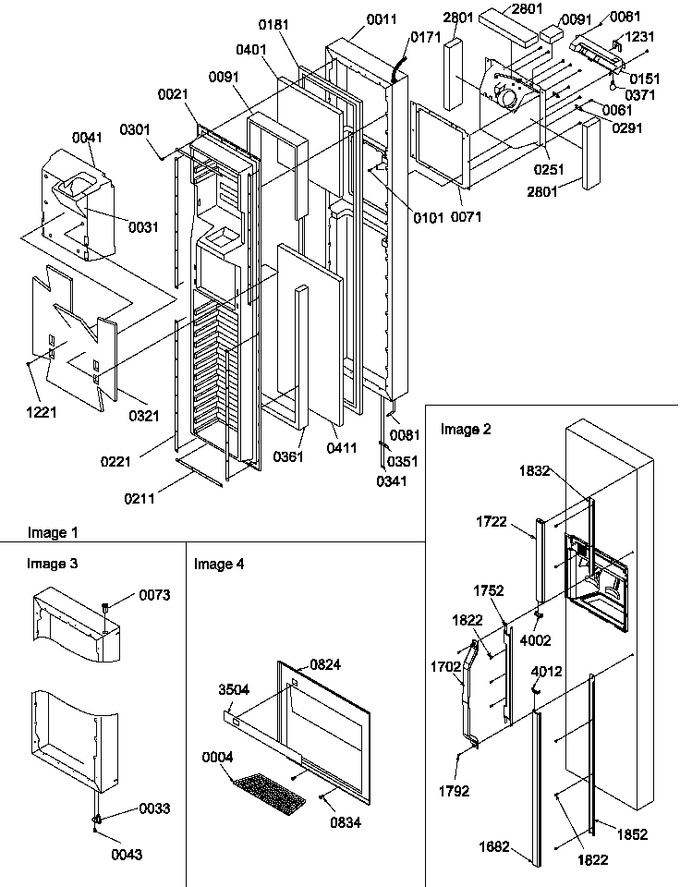

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | D7750608 | Grille, Sump (satin) |
|
- | |||||
| 11 | 10881401L | Assy Frz Door Fm |
|
- | |||||
| 21 | 10860902 | Liner, Frz Door |
|
- | |||||
| 31 | 10895501 | Insul, Ice Chute |
|
- | |||||
| 33 | R0181181 | Closure-e Door (Replaces: 12113203) |
|
Immediately | $ 7.55 | ||||
| 41 | 10895401 | Insul., I/w Cavity |
|
- | |||||
| 43 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 71 | D7791003 | Gasket Cavity |
|
- | |||||
| 73 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 81 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 91 | B0523562 | Insul. By The Ft. |
|
- | |||||
| 101 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 151 | 10058406 | Ass`y, Elec Brkt |
|
- | |||||
| 171 | 10952102 | Harness-fz Door |
|
- | |||||
| 181 | 10359702 | Gasket (w Frz Dr) |
|
- | |||||
| 211 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 221 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 251 | 10882004 | L Cavity Assy |
|
- | |||||
| 291 | C8973902 | Clip-facade Mtg |
|
- | |||||
| 301 | M0219730 | Screw |
|
$ 7.65 | |||||
| 321 | 10941501 | Insul, Batt |
|
- | |||||
| 341 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 351 | C8972406 | Stop, L Door |
|
- | |||||
| 361 | 876370 | Insulation Bott (1= 1ft) (Replaces: B0523588) |
|
$ 243.14 | |||||
| 371 | W10857122 | Light Bulb (Replaces: M0360001) |
|
$ 14.52 | |||||
| 401 | 12016901 | Insul, Batt (ref. Door) |
|
- | |||||
| 411 | 12016902 | Insul, Batt (ref. Door) |
|
- | |||||
| 824 | 10810802 | Facade-l Disp. |
|
- | |||||
| 834 | 12043801 | Cap-silver Switch |
|
- | |||||
| 1221 | M0311601 | Plug, Button |
|
- | |||||
| 1231 | 10582801 | Gasket, Switch |
|
- | |||||
| 1682 | 10810509 | Trim, Bottom Door |
|
- | |||||
| 1702 | 10809102 | Kit, Sxs Hndl (l) |
|
- | |||||
| 1722 | 10810309 | Trim-l Top Fz Dr |
|
- | |||||
| 1752 | 10810602 | Trim, L Ctr I & W Dr |
|
- | |||||
| 1792 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 1822 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 1832 | 10852212 | Ret-up Fz Trim |
|
- | |||||
| 1852 | 10852215 | Ret-lw Fz Trim |
|
- | |||||
| 2801 | B0523596 | Insul. By The Ft. |
|
- | |||||
| 3504 | 10888307 | Insert, Facade |
|
- | |||||
| 4002 | 10953113 | Insert, Door Trim |
|
- | |||||
| 4012 | 10953114 | Insert, Trim (almond) |
|
- |
