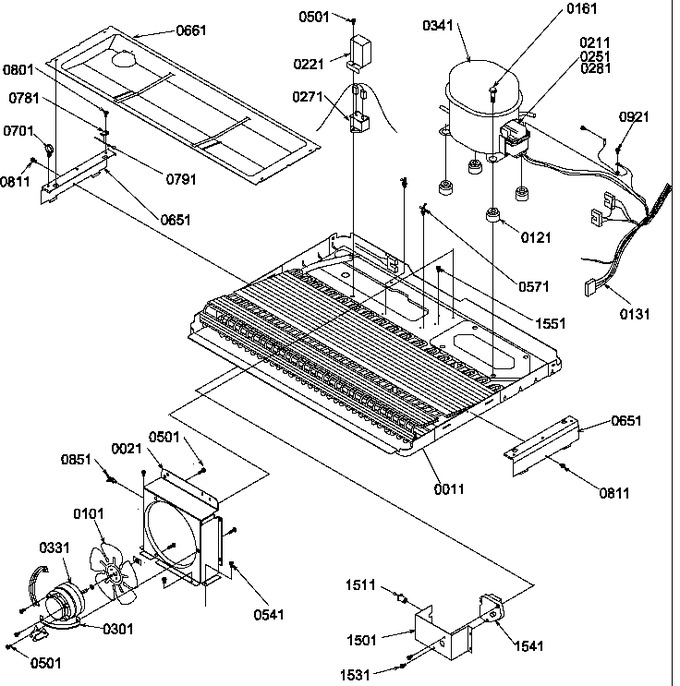

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10544108 | Assy,cond/pan-e Ct |
|
- | |||||
| 21 | 10602404 | Kit,shroud/brkt Sound |
|
- | |||||
| 101 | 10518702 | Blade, Fan |
|
- | |||||
| 121 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 131 | 10967601 | Harness, M.c. |
|
- | |||||
| 161 | M0221523 | Screw, Shldr |
|
- | |||||
| 211 | 10377015 | Overload |
|
- | |||||
| 221 | 10266402 | Shield, Capacitor |
|
- | |||||
| 251 | WP10097202 | Ptc Relay (Replaces: 10097202) |
|
$ 124.93 | |||||
| 271 | WP65889-4 | Capacitor (Replaces: C8931604) |
|
Immediately | $ 61.14 | ||||
| 281 | 10757301 | Cover, Terminal |
|
- | |||||
| 301 | 10496501 | Kit,shroud/brkt Sound |
|
- | |||||
| 331 | 833697 | Motor, Fan (Replaces: 10884501) |
|
Immediately | $ 88.15 | ||||
| 341 | W10160407 | Kit, Compressor (1390) (Replaces: 12049722) |
|
$ 629.92 | |||||
| 501 | M0223803 | Screw |
|
- | |||||
| 541 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 571 | DC61-40081A | Tie, Wire (Replaces: M0585401) |
|
$ 0.94 | |||||
| 651 | 10495701 | Bracket, Drain Pan Mtg. |
|
- | |||||
| 661 | 10507901 | Pan, Drain |
|
- | |||||
| 701 | M0118703 | Clip, Guide |
|
- | |||||
| 781 | M0585601 | Tab, Wire Tie |
|
- | |||||
| 791 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 801 | M0213529 | Screw |
|
- | |||||
| 811 | A4539601 | Pop Rivet |
|
- | |||||
| 851 | M0585403 | Tie Wire |
|
- | |||||
| 921 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 1501 | 10877004 | Bracket, Timer |
|
- | |||||
| 1511 | A3293505 | Bushing-snap |
|
- | |||||
| 1531 | M0218118 | Screw |
|
- | |||||
| 1541 | R0131577 | Timer, Defrost (8 Hr) (Replaces: 10530702) |
|
Immediately | $ 51.24 | ||||
| 1551 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 |
