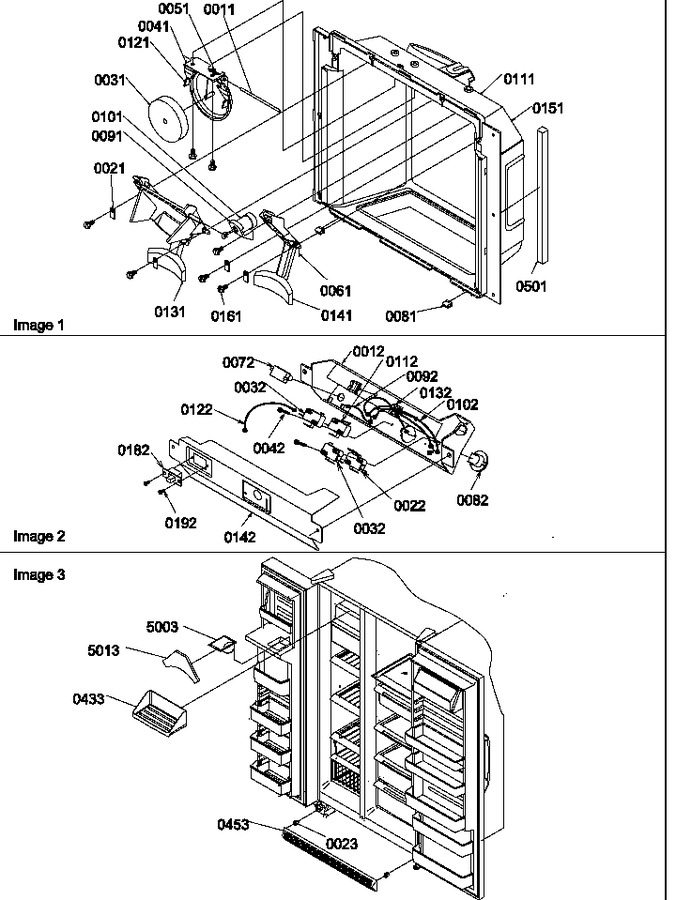

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0156692 | Kit,chute Dr No.3 |
|
- | |||||
| 11 | A1061501 | Pin, Chute Door |
|
- | |||||
| 12 | 10323305 | Bracket, Elec Mtg |
|
- | |||||
| 21 | A1061601 | Retainer, Ice Arm |
|
- | |||||
| 22 | 10533002 | Switch, Limit (water Disp) |
|
- | |||||
| 23 | M0117301 | Clip, Grille |
|
- | |||||
| 31 | B8380701 | Insulation, Chute Door |
|
- | |||||
| 32 | WP10533003 | Switch, Limit (ice Disp) (Replaces: 10533003) |
|
$ 73.29 | |||||
| 41 | B8380801 | Brkt-chute Door |
|
- | |||||
| 42 | M0237809 | Screw, T.f. |
|
- | |||||
| 51 | B8380901 | Spring,chute Door |
|
$ 7.18 | |||||
| 61 | B8385401 | Spring, Return |
|
- | |||||
| 72 | 10166101 | Switch-light Cavity |
|
$ 6.49 | |||||
| 81 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 13.14 | |||||
| 82 | 10131701 | Socket, Light |
|
- | |||||
| 91 | C8972501 | Retainer Door Delay |
|
- | |||||
| 92 | D7726590 | Wire-jumper |
|
- | |||||
| 101 | C8973602 | Delay, Door |
|
$ 49.84 | |||||
| 102 | D7726597 | Wire, Jumper |
|
- | |||||
| 111 | 10876002 | Cavity, Disp (almond) |
|
- | |||||
| 112 | 10533001 | Switch, Limit |
|
$ 14.43 | |||||
| 121 | 10246601 | Kit,chute Dr No.3 |
|
- | |||||
| 122 | D7726592 | Wire-jumper |
|
- | |||||
| 131 | 12102202 | Arm- Stn Ice Act. |
|
- | |||||
| 132 | B5667304 | Wire Clip |
|
- | |||||
| 141 | 10164905 | Arm, Water Actuator (stn) |
|
- | |||||
| 142 | 10131802 | Cover-elec Brkt |
|
- | |||||
| 151 | 10882105 | Heater-cavity |
|
- | |||||
| 161 | M0211116 | Screw, Sm |
|
- | |||||
| 182 | 10166003 | Switch, Slide |
|
- | |||||
| 192 | M0234003 | Screw |
|
- | |||||
| 433 | 10870801 | Shelf, Ice Cream |
|
- | |||||
| 453 | 10810902 | Assy, Toe Grille (almond) |
|
- | |||||
| 501 | A3030357 | Gasket |
|
- | |||||
| 5003 | 10504101 | Chute, Ice |
|
- | |||||
| 5013 | 12044501 | Gasket-ice Chute |
|
- |
