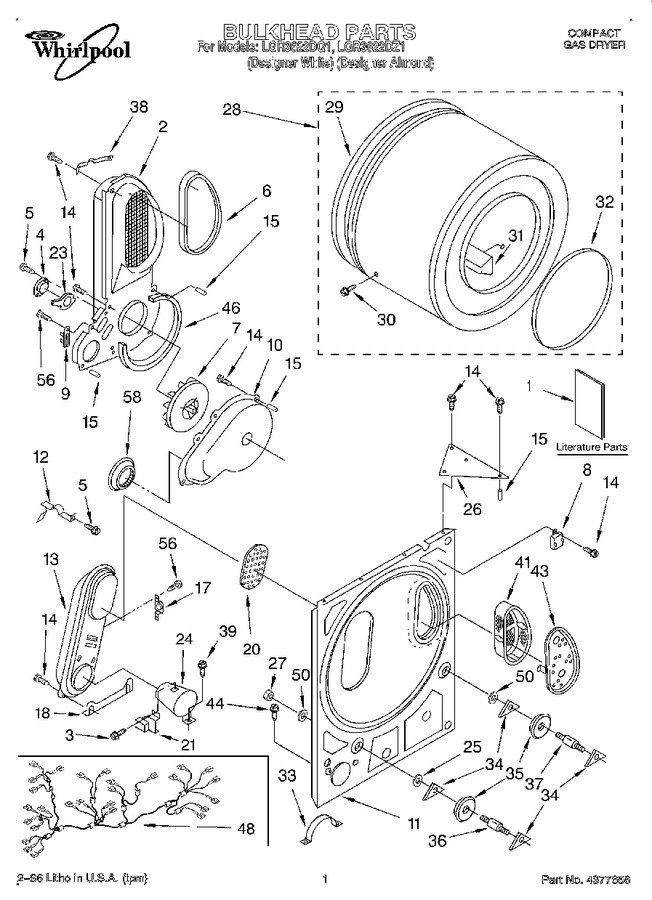

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Bulkhead, Literature
02 - Cabinet
03 - 3401774 Burner
04 - Top And Console
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9830513 | Literature Parts (label, Operating Instruction) |
|
- | |||||
| 1 | LIT9831699 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT9830417 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT9831096 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 2 | 696545 | Air Duct Assembly |
|
- | |||||
| 3 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 4 | WP694674 | Thermostat,140~f (60~c) (Replaces: 660040) |
|
Immediately | $ 84.03 | ||||
| 5 | WP489463 | Screw, 8-18 X 3/4 (Replaces: 3400800) |
|
$ 8.25 | |||||
| 6 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 7 | WP696426 | Wheel, Blower (Replaces: 696426) |
|
Immediately | $ 136.69 | ||||
| 8 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 9 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 10 | 696419 | Scroll, Fan |
|
$ 143.66 | |||||
| 11 | 695928 | Bulkhead |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 15.05 | |||||
| 13 | 346952 | Box, Heater |
|
- | |||||
| 14 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | W10491983 | Cap, Screw (Replaces: 359702) |
|
- | |||||
| 17 | W11050897 | Thermostat, Heater Box 205~f (96.1~c) (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 18 | 347455 | Support, Heater Box |
|
- | |||||
| 20 | 345335 | Cover, Manifold |
|
$ 110.25 | |||||
| 21 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 23 | 61894 | Heater, Thermostat |
|
$ 37.38 | |||||
| 24 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 361.58 | |||||
| 25 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 26 | 345325 | Gusset (2) |
|
- | |||||
| 27 | WP3359452 | Nut, 3/8-16 (2) (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 28 | 3391834 | Drum Assembly (Replaces: 695943) |
|
$ 372.51 | |||||
| 29 | 279735 | Seal, Rear (Replaces: 345648) |
|
Immediately | $ 109.77 | ||||
| 30 | 697777 | Screw |
|
- | |||||
| 31 | 00685207 | Baffle, Drum (3) (Replaces: 685207) |
|
$ 326.00 | |||||
| 32 | WP3394508 | Bearing, Ring (Replaces: 3394508) |
|
$ 131.86 | |||||
| 33 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.64 | |||||
| 34 | WPW10512946 | Ring, Tri (4) (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 35 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 36 | WPW10359270 | Shaft, Support (l.h.) (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 37 | WPW10359269 | Shaft, Support (r.h.) (Replaces: 3399507) |
|
Immediately | $ 56.77 | ||||
| 38 | 345396 | Clip, Air Duct (Replaces: 9830393) |
|
- | |||||
| 39 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 41 | W10828351 | Screen, Lint (Replaces: 348399) |
|
Immediately | $ 69.60 | ||||
| 43 | W10828351 | Cover, Lint Screen (Replaces: 685273) |
|
Immediately | $ 69.60 | ||||
| 44 | WP3390631 | Screw, Bulkhead To Base (4) (Replaces: 342202) |
|
$ 8.25 | |||||
| 46 | 9830394 | Seal, Duct To Scroll |
|
- | |||||
| 48 | 9831047 | Harness, Wiring |
|
- | |||||
| 50 | WP348197 | Washer, Support (3) (Replaces: 348197) |
|
$ 7.55 | |||||
| 56 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 58 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 |
