SELECT A DIAGRAM

01 - Bulkhead, Literature


02 - Cabinet

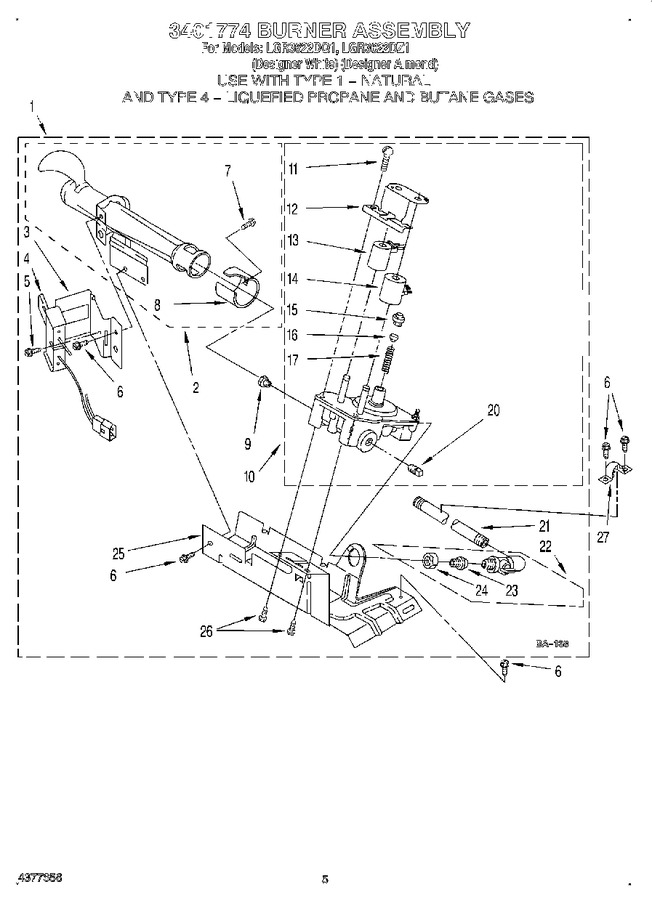

03 - 3401774 Burner


04 - Top And Console


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3401774		Burner Assembly 60 Hz. (type 1 & 4) (white Rodgers)		Appelez-nous	-
2	WP693140		Tube & Shutter, Burner   (Replaces: 693140)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
7	98611		Screw, Tapping		Appelez-nous	-
8	688630		Shutter, Air		Appelez-nous	-
9	WP347743		Orifice, Burner (type 4 (propane))   (Replaces: 347743)				$ 55.62
9	234823		Orifice, Burner (type 1)		Appelez-nous	-
9	WP347744		Orifice, Burner (type 4 (butane))   (Replaces: 347744)				$ 84.63
10	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
11	694421		Screw, Bracket Mounting (8-32 X 1/2) (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
15	WP694424		Leak Limiter   (Replaces: 694424)				$ 36.30
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	695501		Pipe, Gas Supply		Appelez-nous	-
22	345062		Valve & Union, Shut-off		Appelez-nous	-
23	3393767		Pipe, Tail				$ 144.63
24	233076		Nut, Compression				$ 43.19
25	694669		Base, Burner		Appelez-nous	-
26	WP693995		Screw, 8-32 X 3/8 (2)   (Replaces: 3387057)			Immediately	$ 7.55
27	W10402145		Conversion Kit (type 1,2, & 3 To Type 4 (lpg)   (Replaces: 694580)				$ 114.21
27	341029		Clamp, Pipe Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
