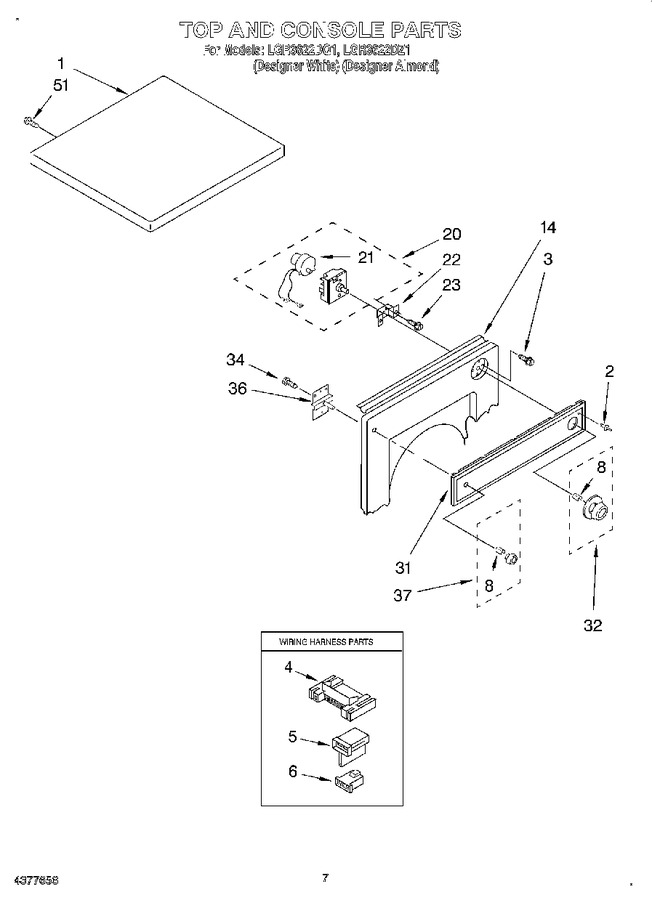

04 - Top And Console


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	689250		Top (almond)		Appelez-nous	-
1	345703		Top (white)				$ 261.58
2	307563		Rivet, Pop		Appelez-nous	-
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
4	3395683		Connector (motor)			Immediately	$ 54.45
5	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
6	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
8	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
14	9830279		Protector, Support		Appelez-nous	-
20	WP8563882		Timer, 60 Hz.   (Replaces: 9831045)				$ 382.32
22	348171		Bracket, Timer		Appelez-nous	-
23	W11808444		Screw, 8-32 X 5/16 (2)   (Replaces: 98139)		Appelez-nous	-
31	9831668		Panel, Control (white)		Appelez-nous	-
31	9831669		Panel, Control (almond)		Appelez-nous	-
32	9831682		Timer Knob & Dial (almond)		Appelez-nous	-
32	9831681		Timer Knob & Dial (white)		Appelez-nous	-
34	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
36	9831692		Switch, Push-to-start		Appelez-nous	-
37	WP3957800		Knob, Push To Start (white)   (Replaces: 3396161)				$ 52.92
37	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3396164)				$ 52.92
51	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
51	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
51	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
51	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
51	978883		Almond (uncut)		Appelez-nous	-
51	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
51	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
