View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Pulsatormotor
02 - Pump
03 - Shell
04 - Spincan
05 - Spinmotor
06 - Timer
07 - Tub 3rdseries
08 - Tub_1stseries
09 - Tub_2ndseries
SELECT A DIAGRAM
New Model Search:

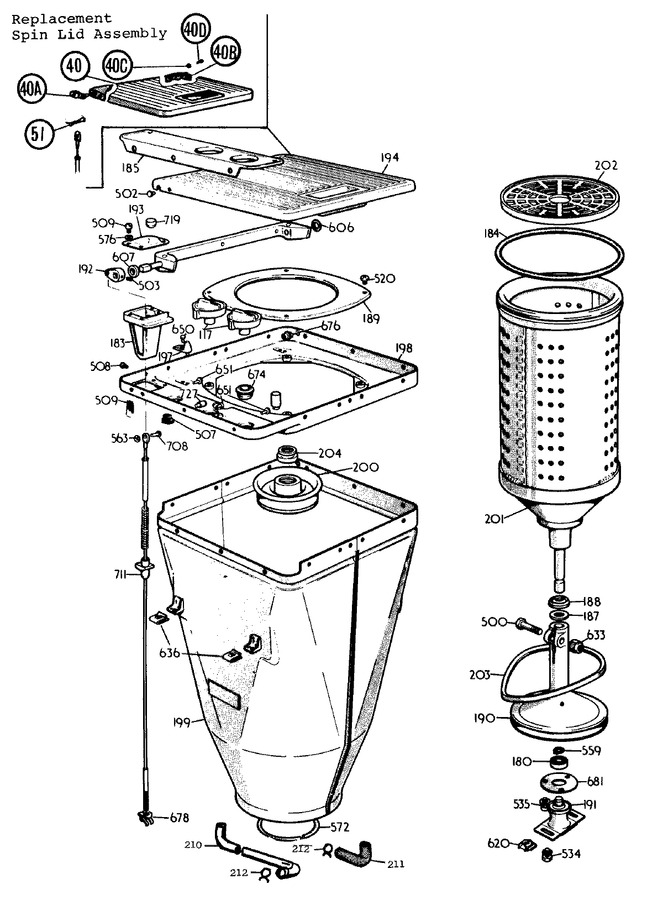

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 40 | 7189 | Spin Lid Assembly |
|
- | |||||
| 40 | 707190 | Rivet |
|
$ 52.40 | |||||
| 40 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 40 | 727403-- | Spin Lid Hinge |
|
- | |||||
| 40 | 727402-- | Actuating Arm |
|
- | |||||
| 51 | 729679 | Split Pin |
|
- | |||||
| 117 | 721723 | Switch Knob 0610 |
|
- | |||||
| 117 | 725211 | Switch Knob 0612 |
|
- | |||||
| 180 | 012197-- | Bearing |
|
- | |||||
| 183 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 184 | 708033-- | Can Buffer Ring |
|
- | |||||
| 185 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 187 | 718702-- | Thrust Washer |
|
- | |||||
| 188 | 716887-- | Counterface |
|
- | |||||
| 189 | 602920-- | Can Cover Plate |
|
- | |||||
| 190 | 718699-- | Drive Pulley |
|
- | |||||
| 191 | 749285-- | Pulley Mount |
|
- | |||||
| 192 | 716672 | Link |
|
- | |||||
| 193 | 716692-- | Hsg Cover |
|
- | |||||
| 194 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 197 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 198 | 724344-- | Mask Plate |
|
- | |||||
| 199 | W10124350 | Not Required Part Or See Note 0610 - First And Second Series Third Series, 612 |
|
- | |||||
| 200 | 717109-- | Brg Ass 0601 |
|
- | |||||
| 201 | 717086 | Spin Can |
|
- | |||||
| 202 | 014118-- | Protective Cover |
|
- | |||||
| 203 | 716882-- | Spin Belt |
|
- | |||||
| 204 | 716886-- | Face Seal 0610 |
|
- | |||||
| 210 | 716899 | Spinner Outlet Hose - 0610 - F |
|
- | |||||
| 211 | 724376-- | Spin Outlet Hose |
|
- | |||||
| 212 | 160780-- | Hose Clamp-tub |
|
- | |||||
| 500 | 014425-- | Screw - Machine |
|
- | |||||
| 503 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 507 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 508 | 717095 | Screw |
|
- | |||||
| 509 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 520 | 717094-- | Screws 0601 |
|
- | |||||
| 534 | 718704-- | Sems Unit |
|
- | |||||
| 535 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 559 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 563 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 572 | 716834-- | Ret Ring 0601 |
|
- | |||||
| 576 | 091082-- | Washer 0600 |
|
- | |||||
| 606 | 716908H | Washer |
|
- | |||||
| 607 | 716908H | Washer |
|
- | |||||
| 620 | 014423-- | Nut And Retainer |
|
- | |||||
| 633 | 719411-- | Nut |
|
- | |||||
| 636 | 908529-- | Spire Nut 0610 |
|
- | |||||
| 650 | 729949 | Rivet |
|
- | |||||
| 651 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 674 | 716705-- | Switch Knob Bearing- |
|
- | |||||
| 676 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 678 | 716662-- | Brake Cable Adj |
|
- | |||||
| 681 | 71,8701 | Clamp Plate |
|
- | |||||
| 708 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 711 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 719 | 716697-- | Spacer |
|
- | |||||
| 727 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 996 | 716701 | Control Panel Screw - Long |
|
- |
