01 - Pulsatormotor


02 - Pump


03 - Shell


04 - Spincan


05 - Spinmotor


06 - Timer


07 - Tub 3rdseries


08 - Tub_1stseries


09 - Tub_2ndseries

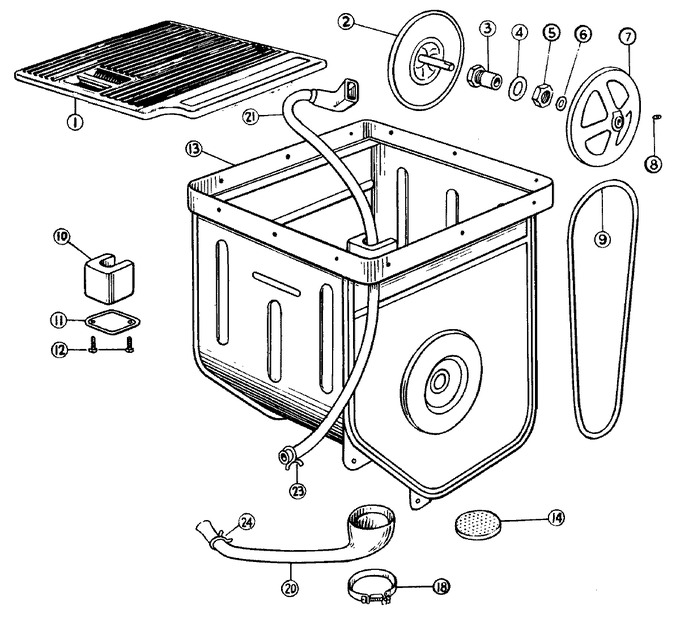

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	725556--		Tub Lid Hdle		Appelez-nous	-
2	601481--		Pulsator & Shaft Ass		Appelez-nous	-
3	014082--		Pulsator Shaft Housi		Appelez-nous	-
4	014144--		Washer		Appelez-nous	-
5	014142--		Nut		Appelez-nous	-
6	31325003		Washer-cupped		Appelez-nous	-
7	601713--		Pulley		Appelez-nous	-
8	901059		Set Screw		Appelez-nous	-
9	716846--		Puls Dr Belt 0601		Appelez-nous	-
10	014116--		Outlet Housing		Appelez-nous	-
11	W10124350		Not Required Part Or See Note		Appelez-nous	-
12	012956--		Screw		Appelez-nous	-
13	W10124350		Not Required Part Or See Note		Appelez-nous	-
14	W10124350		Not Required Part Or See Note		Appelez-nous	-
18	014134--		Hose Clamp Assembly		Appelez-nous	-
20	718476--		Outlet Hose 0601		Appelez-nous	-
21	014562--		Outlet Hose 0610		Appelez-nous	-
23	807995--		Hose Clip		Appelez-nous	-
24	160780--		Hose Clamp-tub		Appelez-nous	-
25	W10124350		Not Required Part Or See Note		Appelez-nous	-
