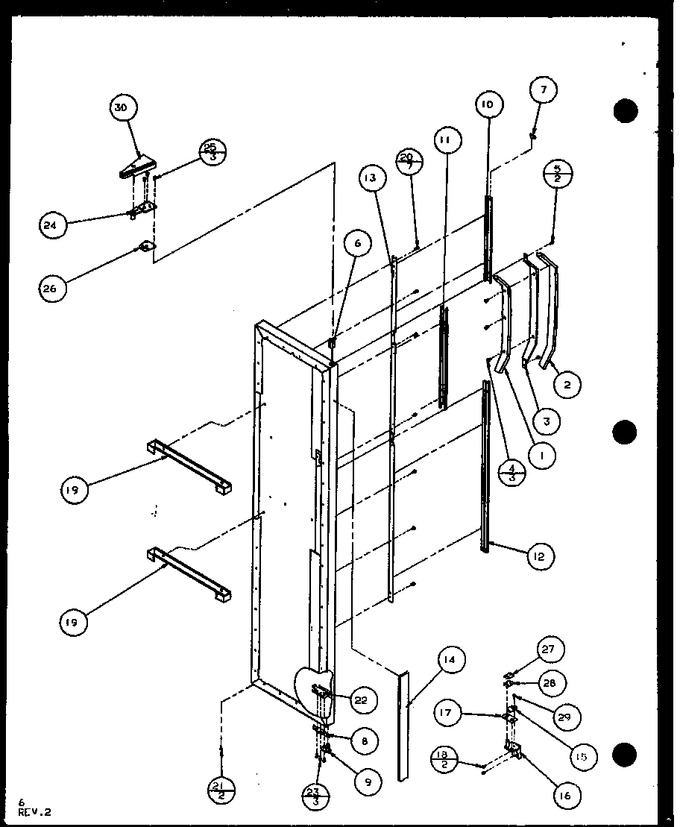

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7863001		Inner Pad K		Appelez-nous	-
2	D7863101		Outer Pad K		Appelez-nous	-
3	D7826603		Handle		Appelez-nous	-
4	M0215115		Screw		Appelez-nous	-
5	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
6	C8965901		Bushing, Top		Appelez-nous	-
7	C8972303		Shim		Appelez-nous	-
8	C8972401		Stop, Door (blk)		Appelez-nous	-
9	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
10	D7852102		Trim Upper Frz Door (b)		Appelez-nous	-
11	D7853902		Trim Center Frz K		Appelez-nous	-
12	D7792702		Lower Trim Frz Door (b)		Appelez-nous	-
13	D7792902		Frz Trim, Retainer		Appelez-nous	-
14	C8974102		Trim, Door		Appelez-nous	-
15	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
16	D7757705		Hinge Assy		Appelez-nous	-
17	B8386703		Kit,btm Hinge Shim		Appelez-nous	-
17	B8386701		Kit,btm Hinge Shim		Appelez-nous	-
17	B8386702		Kit,btm Hinge Shim		Appelez-nous	-
18	M0246258		Screw		Appelez-nous	-
19	D7837401		Support, Handle		Appelez-nous	-
20	M0213815		Screw		Appelez-nous	-
21	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
22	D7790801		Nut, Door Stop		Appelez-nous	-
23	M0219717		Screw		Appelez-nous	-
24	D7757803		Top Hinge Assy		Appelez-nous	-
25	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
26	B8389001		Shim, Top Hinge		Appelez-nous	-
27	B8387701		Shim, Door Closure		Appelez-nous	-
28	B8387702		Shim, Door Closure		Appelez-nous	-
29	WPW10068250		Screw   (Replaces: M0202530)				$ 4.27
30	D7872101		Cover Hinge		Appelez-nous	-
