Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10038401 Knob, Crisper Control Appelez-nous -
2 D7860601 Slide, Crisper Control Appelez-nous -
3 D7616628 Trim Appelez-nous -
4 D7853204 Frame Crisper Appelez-nous -
4 D7853201 Frame Appelez-nous -
5 D7421274 Glass Crisper Top Appelez-nous -
6 D7421273 Glass Crisper Top Appelez-nous -
7 D7782012 Pan, Fruit Appelez-nous -
8 D7782106 Crisper Pan Appelez-nous -
9 D7859601 Band Crisper Control Appelez-nous -
10 10036003 Glass Top, Meatkeeper Appelez-nous -
11 D7857001 Frame M.k. Appelez-nous -
12 C8913511 Trim, Front Shelf Appelez-nous -
13 C8913604 Trim, Shelf Rear Appelez-nous -
14 10036004 Glass Shelf Appelez-nous -
15 D7871008 Frame Cont. Shelf Appelez-nous -
16 A3263905 Gasket-per Ft Appelez-nous -
17 C8990402 Trim, Rear Shelf Appelez-nous -
18 C8913532 Trim Appelez-nous -
19 D7862918 Side Rail Appelez-nous -
19 D7862919 Side Rail Appelez-nous -
20 D7859401 Slide-mk Control Appelez-nous -
22 D7698105 Sleeve, Meat Keeper Appelez-nous -
23 D7698316 Meat Pan Appelez-nous -
24 D7869102 Ext. Air Duct Appelez-nous -
25 D7873601 Grommet, Mk Appelez-nous -
26 D7869001 Xduct M.k. Air Appelez-nous -
27 M0230028 Screw, No.8-32 X 5/16 Pph (blk) Appelez-nous -
28 D7547604 Bottle Rack Appelez-nous -
29 D7789801 Ladder, Cantilever Appelez-nous -
30 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

31 M0580007 Grommet, Screw Appelez-nous -
33 D7718403 Seal, Crisper Front Appelez-nous -
33 D7718404 Seal, Crisper Rear Appelez-nous -
34 10043102 Ext. Rear Glass Appelez-nous -
35 D7859501 Band M.k. Control Appelez-nous -
36 C8992301 Bracket Appelez-nous -
NI D7871815 Glass Shelf Assy Appelez-nous -
NI R0179137 Crisper Top Assy, Lower Appelez-nous -
NI R0179139 Glass Crisper Top Assy Upper Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

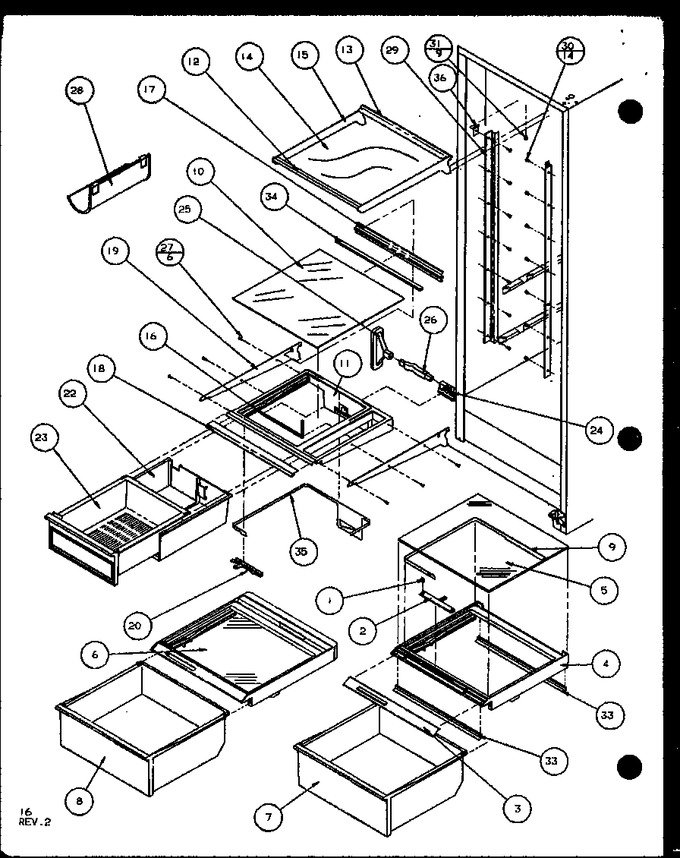

Diagram for SL22JB (BOM: P7870132W)
