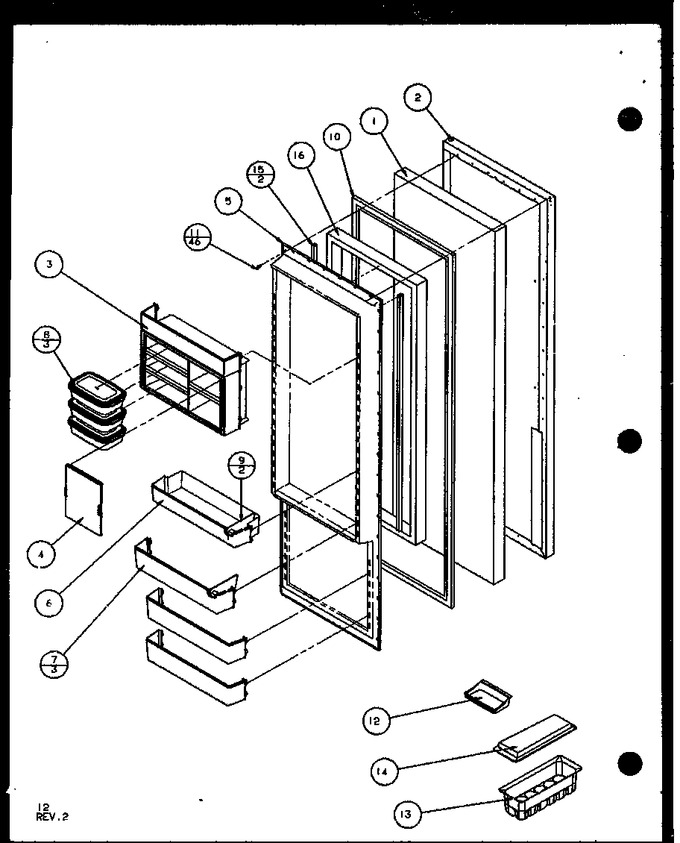

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0566723		Insulation		Appelez-nous	-
2	D7834014		Dr Pan, Ref, Gold (		Appelez-nous	-
2	D7834007		Dr Pan, Ref, L (		Appelez-nous	-
2	D7834006		Xdoor Ref W		Appelez-nous	-
3	D7781203		Dairy Module		Appelez-nous	-
4	D7781305		Door Dairy		Appelez-nous	-
5	D7828203		Inner Door, Ref		Appelez-nous	-
6	D7783301		Bucket, Ref Door		Appelez-nous	-
7	67003697		Shelf, Ref Door   (Replaces: D7783401)				$ 82.08
8	D7806404		Container Sec. Ser.		Appelez-nous	-
9	D7814602		Snugger		Appelez-nous	-
10	10104401		Gasket, Door (w Ref)		Appelez-nous	-
11	M0219717		Screw		Appelez-nous	-
12	D3799802		Butter Tray		Appelez-nous	-
13	D7695605		Egg Bucket V		Appelez-nous	-
14	D7805902		Cover, Egg Bucket		Appelez-nous	-
15	C8987104		Seal, Door Dike		Appelez-nous	-
16	B0523562		Insul. By The Ft.		Appelez-nous	-
