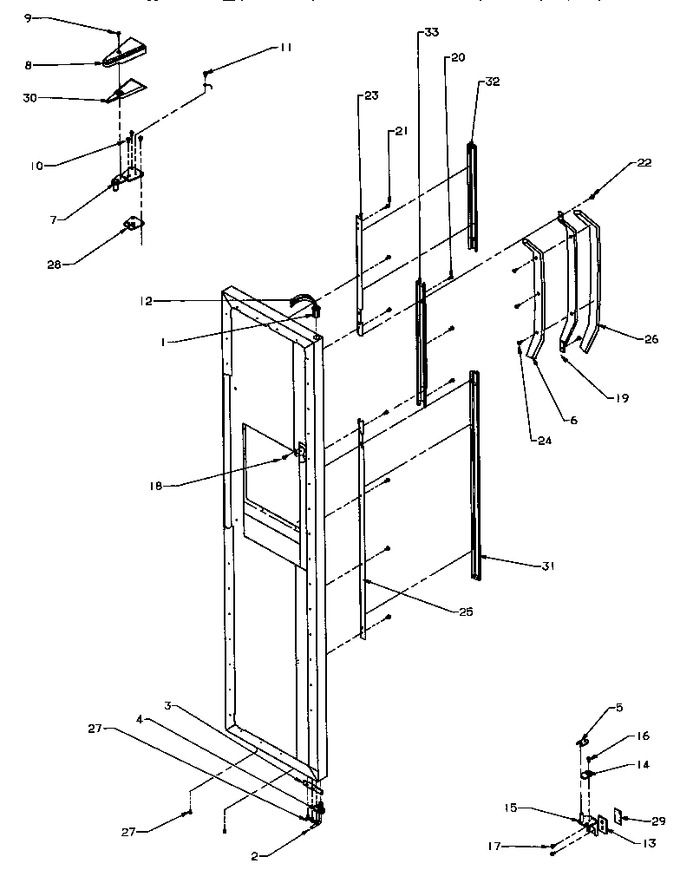

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
2	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
3	C8972402		Stop, Door		Appelez-nous	-
4	R0181181		Kit,dr Closure   (Replaces: D7751401)			Immediately	$ 7.55
5	B8387701		Shim, Door Closure		Appelez-nous	-
5	B8387702		Shim, Door Closure		Appelez-nous	-
6	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
7	10495803		Hinge, Top (e-ct)		Appelez-nous	-
8	10504007		Cover, Hinge (white)		Appelez-nous	-
9	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
10	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
11	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.72
12	10164202		Harness Fz Door		Appelez-nous	-
13	10399502		Kit,btm Hinge Shim		Appelez-nous	-
13	10399501		Kit,btm Hinge Shim		Appelez-nous	-
14	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
15	10496104		Kit,hinge Lh Btm(b)		Appelez-nous	-
16	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
17	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
18	WP489399		Screw   (Replaces: M0232903)				$ 7.30
19	D7826603		Handle		Appelez-nous	-
20	M0216517		Screw		Appelez-nous	-
21	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
22	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
23	D7793002		Retainer, Trim		Appelez-nous	-
24	M0215116		Screw		Appelez-nous	-
25	D7793102		Retainer, Trim		Appelez-nous	-
26	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
27	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
28	B8389001		Shim, Top Hinge		Appelez-nous	-
29	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
30	10126603		Foil, Hinge Cover		Appelez-nous	-
31	D7792703		Trim, Lwr Frz Door (w)		Appelez-nous	-
32	D7852103		Upper Trim Frz Dr (w)		Appelez-nous	-
33	D7854003		Trim Center Frz (w)		Appelez-nous	-
	NOTE:		The Foamed In Place Post Condenser Mullion Loop Which Replaces The Electric Mullion Heater On This Model Clips To The Back Side Of Mullion. Any Attemp To Remo		Appelez-nous	-
