1 10559903 Assy, Mach Comp Back Appelez-nous -
2 10507901 Pan, Drain Appelez-nous -
3 M0219704 Screw Appelez-nous -
4 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

5 10497801 Cover H.v. Box Appelez-nous -
6 10495701 Bracket, Drain Pan Mtg. Appelez-nous -
7 M0216517 Screw Appelez-nous -
8 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

9 M0585601 Tab, Wire Tie Appelez-nous -
10 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06

11 M0118703 Clip, Guide Appelez-nous -
12 10518701 Blade, Fan Appelez-nous -
13 WPW10169124 Grommet   (Replaces: B8333401) Special Order $ 7.55

14 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

15 YB8358601 Bale Strap Appelez-nous -
16 B8384901 Pin, Comp. Mtg. Appelez-nous -
17 B8385001 Clip, Comp. Mtg Appelez-nous -
18 10377004 Overload Appelez-nous -
19 10266402 Shield, Capacitor Appelez-nous -
20 2154436 Relay-ptc   (Replaces: C8931502) Special Order $ 141.69

21 WPW10662129 Capacitor   (Replaces: C8931607) In-Stock Immediately $ 58.86

22 C8960801 Term Cover Appelez-nous -
23 10496501 Kit,shroud/brkt Sound Appelez-nous -
24 833697 Motor, Fan   (Replaces: 10522101) In-Stock Immediately $ 88.15

25 W10439652 Kit, Compressor (dan Nf7ak)   (Replaces: 10507803) Special Order $ 442.20

26 M0213529 Screw Appelez-nous -
27 10843901 Harness-mach Appelez-nous -
28 10602404 Kit,shroud/brkt Sound Appelez-nous -
29 M0585403 Tie Wire Appelez-nous -
30 10851302 Insulation, Tube Appelez-nous -
31 M0223803 Screw Appelez-nous -
32 A4539601 Pop Rivet Appelez-nous -
33 M0253916 Screw Appelez-nous -
34 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.94

35 10461505 Cont, Adap. Defrost Appelez-nous -
36 10544104 Assy,cond/pan-e Ct Appelez-nous -
37 10495901 Box, H. V. Appelez-nous -
38 M0108001 Clamp, Tube Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

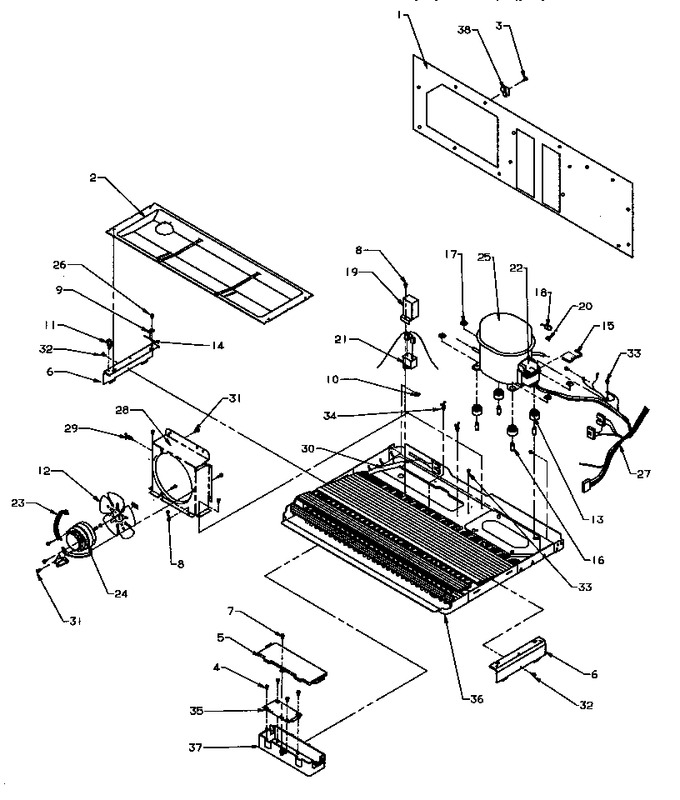

Diagram for SPD22Q2W (BOM: P1181314W W)
