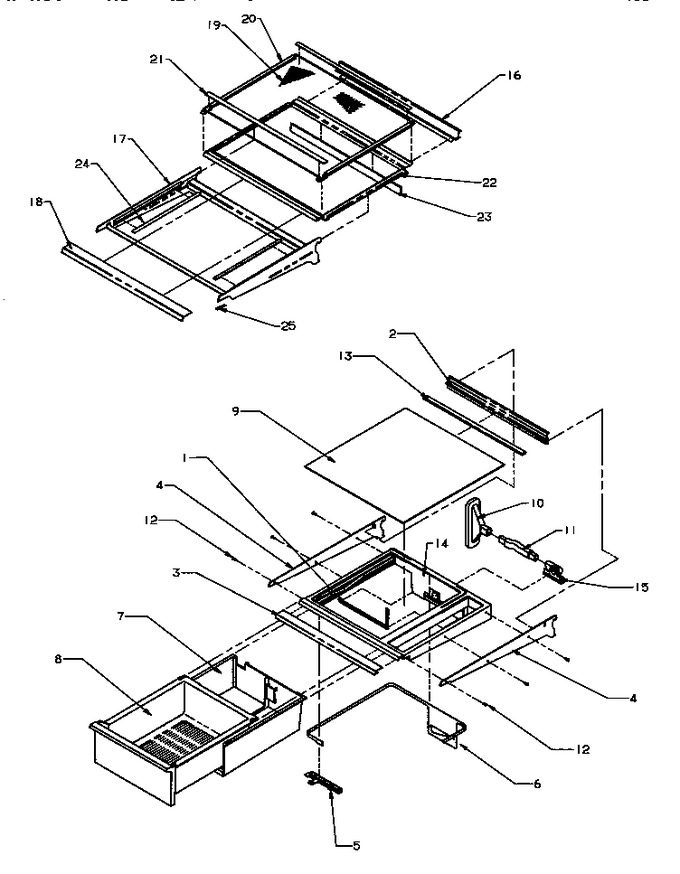

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3030353		Gasket		Appelez-nous	-
2	C8990405		Trim, Rear		Appelez-nous	-
3	10049939		Trim, Shelf Frt		Appelez-nous	-
4	D7862989		Rail, Blank Side		Appelez-nous	-
4	D7862988		Rail, Blank Side		Appelez-nous	-
5	D7859402		Slide-mk Control		Appelez-nous	-
6	D7859504		Band M.k. Control		Appelez-nous	-
7	D7698112		Sleeve M.k. V		Appelez-nous	-
8	D7698346		Pan, Meat		Appelez-nous	-
9	10370029		Glass, Shelf		Appelez-nous	-
10	10546701		Grommet, Meat Keeper		Appelez-nous	-
11	D7869001		Xduct M.k. Air		Appelez-nous	-
12	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
13	10043102		Ext. Rear Glass		Appelez-nous	-
14	D7857005		Frame, M.k		Appelez-nous	-
15	D7869101		Ext. Air Duct		Appelez-nous	-
16	C8913619		Trim, Glass Shlf Rear		Appelez-nous	-
17	10824402		Frame, Cant. Shelf		Appelez-nous	-
18	10049940		Trim, Shelf (front)		Appelez-nous	-
19	10370068		Glass, Shelf		Appelez-nous	-
20	10635802		Extr., Glass Shelf		Appelez-nous	-
21	A3189353		Gasket, Foam		Appelez-nous	-
22	10825202		Frame, Sliding		Appelez-nous	-
23	10850701		Stop, Refr Shelf		Appelez-nous	-
24	10826702		Bearing, Refr. Shelf		Appelez-nous	-
25	10903701		Block, Glide		Appelez-nous	-
NI	10834402		Ass`y, Sliding Shelf		Appelez-nous	-
