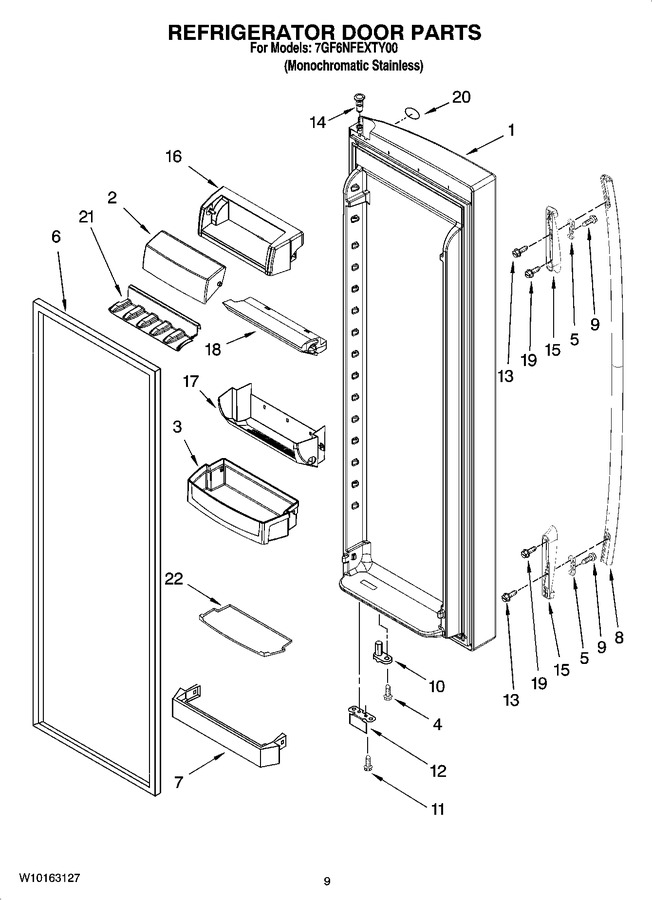

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2303111SAP		Refrigerator Door (includes Item 6) (mono Stainless)		Appelez-nous	-
2	2255421		Dairy Door				$ 34.76
3	2223239K		Door Bin (2)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 335.39
7	WP2318736		Trivet   (Replaces: 2223727)				$ 76.94
8	2323112		Handle (universal Silver)		Appelez-nous	-
9	WP489491		Screw   (Replaces: 489491)				$ 7.30
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
13	W10112257		Screw		Appelez-nous	-
14	WP2182181		Thimble, Top   (Replaces: 2303107)				$ 8.15
15	2323116		Endcap, Handle (stainless)		Appelez-nous	-
16	2255420		Door Compartment				$ 49.86
17	2255422		Frame, Can Rack				$ 70.07
18	2255424		Air Diffuser Asm		Appelez-nous	-
19	W10114631		Screw		Appelez-nous	-
20	2220214		Nameplate				$ 32.43
21	2255423		Floor, Can Rack		Appelez-nous	-
22	2315057K		Water Bottle		Appelez-nous	-
22	2223464K		Mat, Bin (2)		Appelez-nous	-
