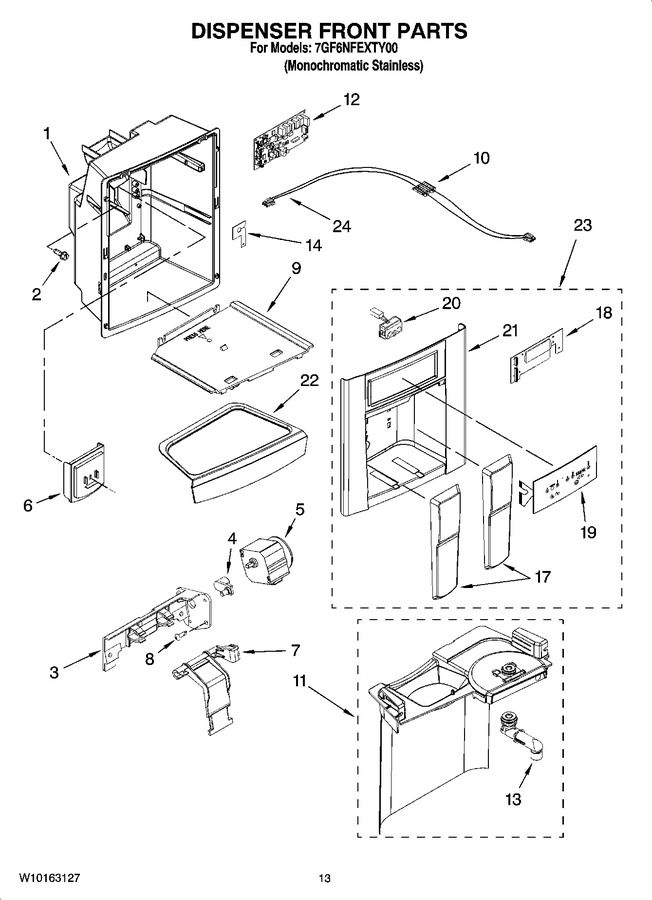

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP939101		Screw (4)   (Replaces: 939101)				$ 7.88
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 108.33
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.98
9	2305213AP		Grille, Slide (apollo Grey)		Appelez-nous	-
10	2308165		Ferrite Bead		Appelez-nous	-
11	2305459US		Separator Assembly (universal Silver)		Appelez-nous	-
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 365.39
13	2305236		Spigot		Appelez-nous	-
14	2305447		Clip, Wiring		Appelez-nous	-
17	2305247MG		Pad, Ice & Water (for Monochromatic Stainless Model)		Appelez-nous	-
18	2304163		Cover, Electronic Control				$ 210.32
20	2303841		Led Assembly		Appelez-nous	-
22	2305216US		Tray, Housing (universal Silver)				$ 32.57
23	2305490US		Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (universal Silver)		Appelez-nous	-
24	2187814		Wire Assembly, User Interface (includes 10)				$ 35.21

    View Diagram in Separate Window       Print Part List
