SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

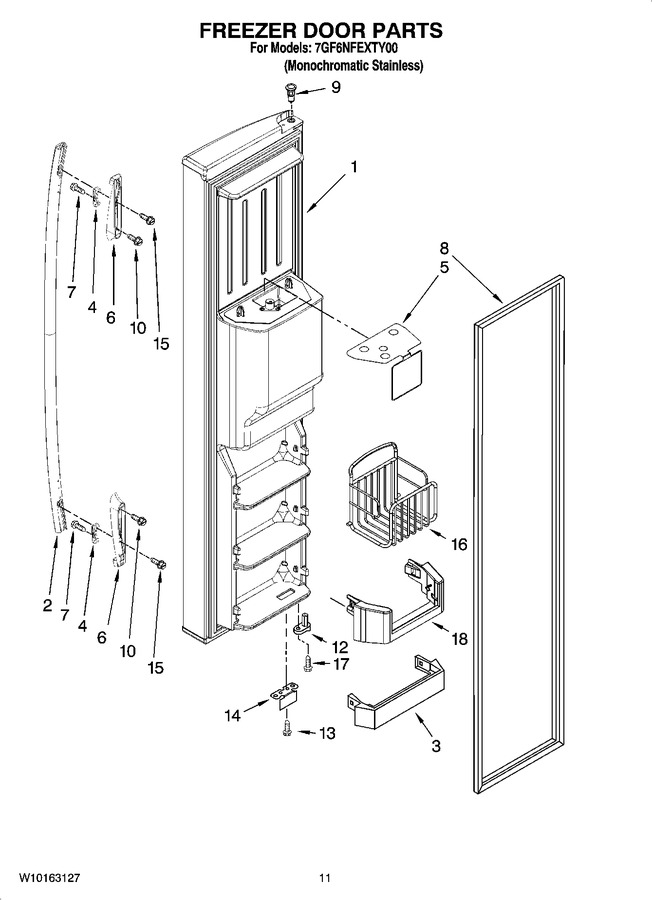

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2305487SAP		Freezer Door (includes 8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
2	2323112		Handle (universal Silver)		Appelez-nous	-
3	WP2171157		Trivet   (Replaces: 2171157K)				$ 60.67
4	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
5	2304895		Safety Barrier		Appelez-nous	-
6	2323116		Endcap, Handle (stainless)		Appelez-nous	-
7	WP489491		Screw   (Replaces: 489491)				$ 6.95
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
9	WP2182181		Thimble, Top   (Replaces: 2303107)				$ 7.76
10	W10114631		Screw		Appelez-nous	-
12	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
15	W10112257		Screw		Appelez-nous	-
16	2304309		Basket, Tilt-out (2)				$ 77.01
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	2305228		Tube, Door		Appelez-nous	-
18	2310084		Wire Harness, Freezer Door		Appelez-nous	-
18	2223334		Trivet, Tilt-out (2)				$ 25.46

    View Diagram in Separate Window       Print Part List
