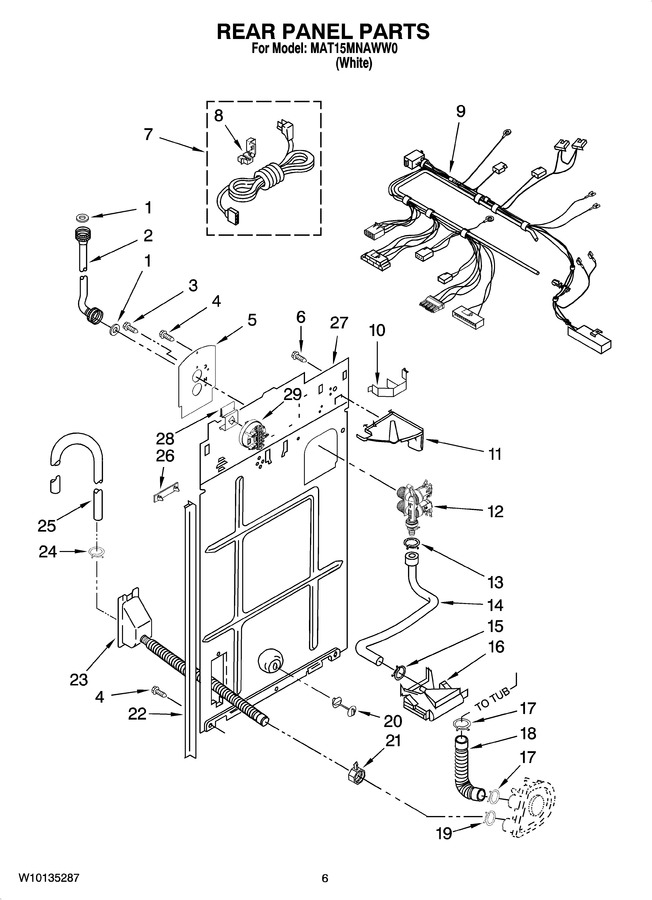

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 7.70 | |||||
| 2 | WP3949381 | Hose, Water Inlet (2) (red Coupler) (Replaces: 3949381) |
|
$ 47.71 | |||||
| 2 | WP3949380 | Hose, Water Inlet (2) (blue Coupler) (Replaces: 3949380) |
|
$ 35.82 | |||||
| 3 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 4 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 5 | 285930 | Plate, Mixing Valve (Replaces: 8541624) |
|
$ 74.56 | |||||
| 6 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 7 | 285928 | Cord, Power (Replaces: 3976231) |
|
$ 131.11 | |||||
| 8 | 3952821 | Strain Relief, Power Cord To Rear Panel |
|
- | |||||
| 9 | W10177765 | Harness, Wiring (for Detail See Pages 12 & 13) |
|
- | |||||
| 10 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 11 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 12 | W10151480 | Valve, Water Inlet W/bi Metal |
|
$ 89.96 | |||||
| 13 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.40 | ||||
| 14 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 23.69 | ||||
| 15 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 16 | WP3360977 | Vacuum Break (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 17 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.81 | ||||
| 18 | 285871 | Hose, Pump To Tub (includes Item 17) (Replaces: 3951449) |
|
Immediately | $ 26.68 | ||||
| 19 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.39 | ||||
| 20 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 18.90 | ||||
| 21 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 22 | WP62747 | Pad, Rear Panel (Replaces: 3354204) |
|
$ 26.26 | |||||
| 23 | WPW10358151 | Drain Hose Assy. (includes Item 21) (Replaces: 8317959) |
|
$ 105.93 | |||||
| 24 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 25 | WPW10141216 | Hose, Discharge Gooseneck (Replaces: W10141216) |
|
$ 58.32 | |||||
| 26 | 389379 | Retainer, Side To Feature Panel (2) |
|
$ 5.84 | |||||
| 27 | 8541652 | Panel, Rear |
|
- | |||||
| 28 | W10133269 | Bracket, Pressure Switch |
|
- | |||||
| 29 | W10153112 | Pressure Switch Triple-level |
|
$ 84.83 |
