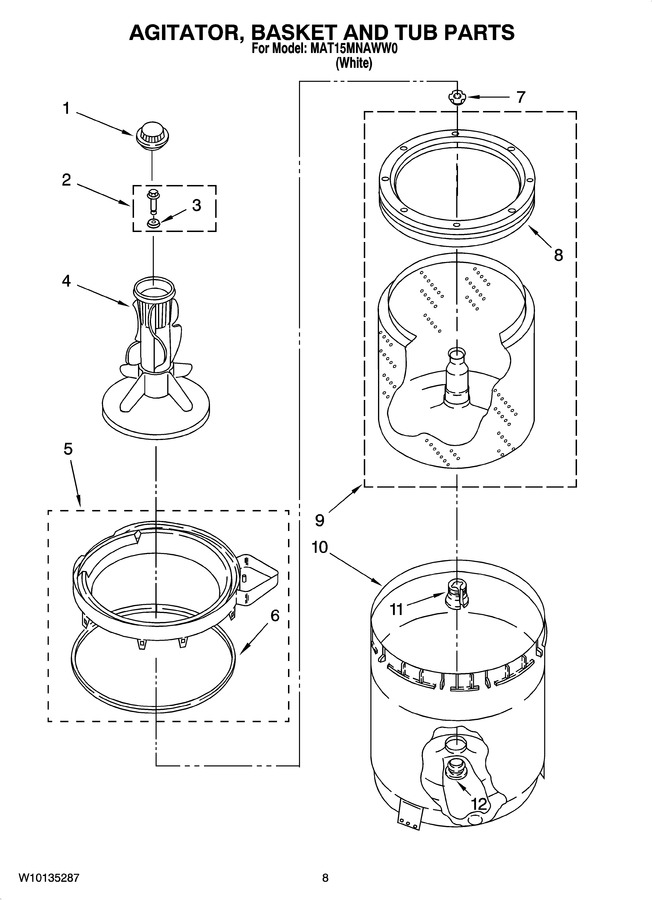

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10131111 | Cap, Agitator (Replaces: W10131111) |
|
Immediately | $ 8.91 | ||||
| 2 | W10772621 | Screw & Washer Assembly (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WPW10131112 | Agitator (Replaces: W10131112) |
|
Immediately | $ 124.13 | ||||
| 5 | W10880720 | Tub Ring (Replaces: 8528150) |
|
Immediately | $ 233.34 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 29.66 | ||||
| 7 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 8 | WP387240 | Balance Ring (Replaces: 387240) |
|
Immediately | $ 191.15 | ||||
| 9 | W10389329 | Basket & Balance Ring (Replaces: 8526017) |
|
Immediately | $ 318.45 | ||||
| 10 | 63849 | Tub (Replaces: W10135425) |
|
$ 306.29 | |||||
| 11 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 12 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 |
