Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3360629 Gearcase (complete)   (Replaces: W10140301) In-Stock Immediately $ 469.13

2 285202 Cover, Gearcase Appelez-nous -
3 WP3349985 Seal, Gearcase Cover   (Replaces: 3349985) In-Stock Immediately $ 27.52

4 WP285195 Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195) In-Stock Immediately $ 109.61

5 WP3351614 Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8)   (Replaces: 3351614) In-Stock Immediately $ 7.30

6 3360629 Spin Pinion & Gear Spin Kit   (Replaces: W10172898) In-Stock Immediately $ 469.13

8 90369 Ring, Retaining (2) Special Order $ 5.04

9 62677 Retainer, Spring (2) Special Order $ 6.25

10 62676 Spring, Agitate Special Order $ 56.99

11 WP389387 Gear, Agitate (includes 15 & 17)   (Replaces: W10110245) Special Order $ 283.19

12 62619 Washer, Agitate Gear Special Order $ 14.13

13 WP389387 Cam Follower (includes 14)   (Replaces: 62580) Special Order $ 283.19

14 WP389387 Cam, Agitate (includes 13)   (Replaces: 3976349) Special Order $ 283.19

15 389231N Shaft, Agitator   (Replaces: 389231) Appelez-nous -
16 62618 Washer, Cam Thrust Appelez-nous -
17 WP388815 Washer, Intermediate   (Replaces: 388815) Special Order $ 8.19

18 WP389387 Shaft, Agitator (complete)   (Replaces: 389387) Special Order $ 283.19

19 285205 Bearing, Thrust   (Replaces: 16018) Special Order $ 7.90

20 285205 Ball, Bearing   (Replaces: 85529) Special Order $ 7.90

21 285352 Seal, Thrust Plug   (Replaces: W10111745) In-Stock Immediately $ 42.25

22 3362552 Ring, Retaining Appelez-nous -
23 285766 Washer Kit, Thrust Appelez-nous -
24 388253A Neutral Assembly   (Replaces: 388253) In-Stock Immediately $ 61.67

25 3360629 Rack, Connecting   (Replaces: 8546456) In-Stock Immediately $ 469.13

26 3360629 Actuator, Shift   (Replaces: 62621) In-Stock Immediately $ 469.13


    View Diagram in Separate Window     Print Icon   Print Part List

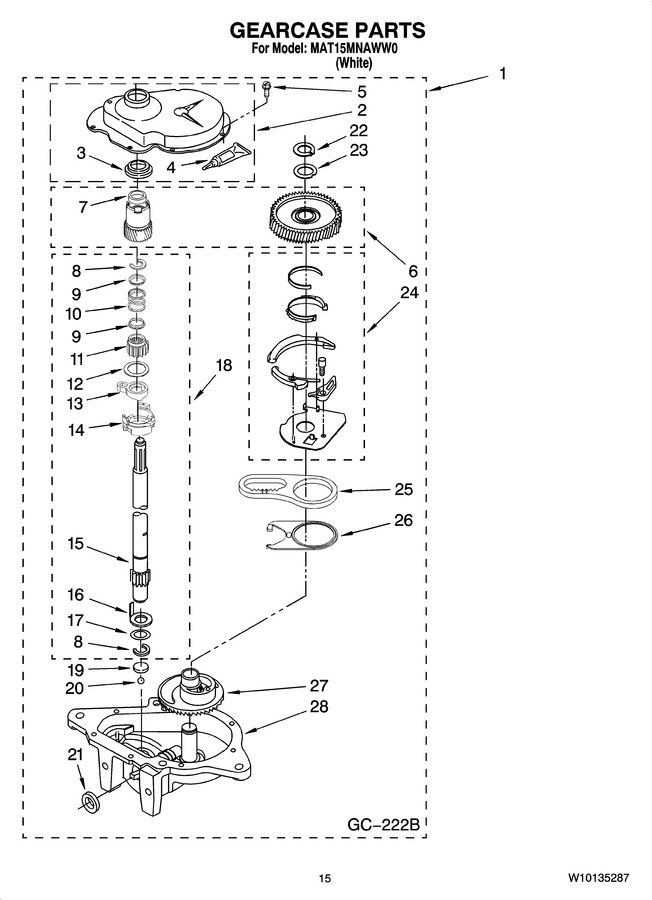

Diagram for MAT15MNAWW0
