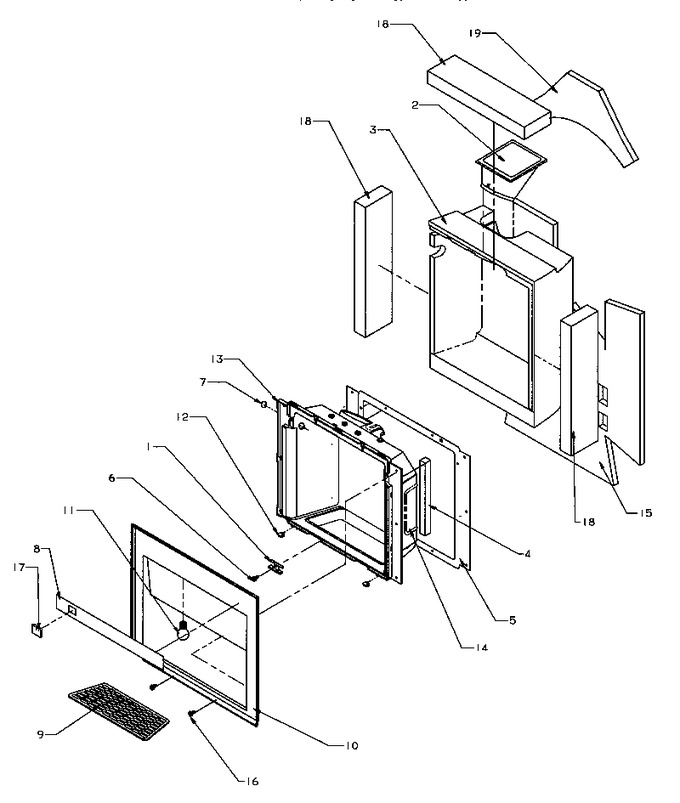

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8992901		Clip		Appelez-nous	-
2	10504101		Chute, Ice		Appelez-nous	-
3	10870301		Insul.-i & W Cavity		Appelez-nous	-
4	A3030357		Gasket		Appelez-nous	-
5	D7791003		Gasket Cavity		Appelez-nous	-
6	M0216517		Screw		Appelez-nous	-
7	M0311601		Plug, Button		Appelez-nous	-
8	10984612		Insert, Facade (black)		Appelez-nous	-
9	D7750602		Grille Sump (black)		Appelez-nous	-
10	10986103		Facade-e Disp		Appelez-nous	-
11	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
12	B8390301		Clip, Facade		Appelez-nous	-
13	10876003		Cavity, Disp (black)		Appelez-nous	-
14	10882106		Heater-cavity		Appelez-nous	-
15	10941501		Insul, Batt		Appelez-nous	-
16	M0219601		Screw		Appelez-nous	-
17	10176311		Cap-black Switch		Appelez-nous	-
18	B0523596		Insul. By The Ft.		Appelez-nous	-
19	Y10949901		Gasket-ice Chute		Appelez-nous	-
