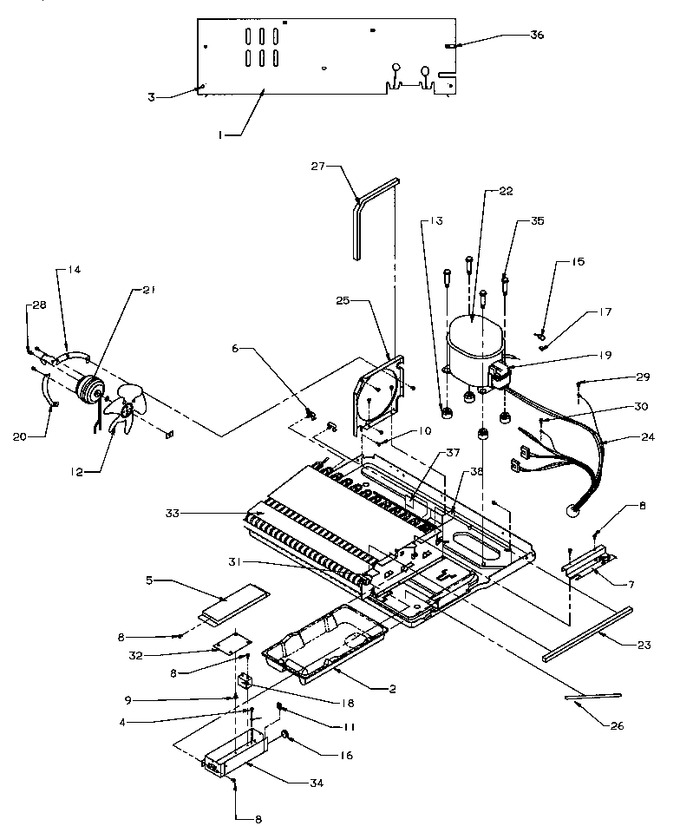

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7788909 | Ass`y, Mc Back |
|
- | |||||
| 2 | 10845601 | Pan, Drain |
|
- | |||||
| 3 | M0201216 | Screw - Sm |
|
- | |||||
| 4 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 5 | 10276906 | Top, Hv Box |
|
- | |||||
| 6 | 10874601 | Clip-cond. |
|
- | |||||
| 7 | 10845302 | H.v. Box Shelf-e Ct |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 9 | M0585504 | Support |
|
- | |||||
| 10 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 | |||||
| 11 | M0585703 | Clamp, Wire |
|
- | |||||
| 12 | B5742602 | Blade, Fan |
|
- | |||||
| 13 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 14 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 15 | 10377015 | Overload |
|
- | |||||
| 16 | A3293504 | Bushing, Snap |
|
- | |||||
| 17 | WP10097202 | Ptc Relay (Replaces: 10097202) |
|
$ 124.93 | |||||
| 18 | WP65889-4 | Capacitor (Replaces: C8931604) |
|
Immediately | $ 61.14 | ||||
| 19 | 10757301 | Cover, Terminal |
|
- | |||||
| 20 | C8982102 | Brkt,cond. Mtr |
|
- | |||||
| 22 | W10309994 | Kit,compressor-tpb1390yxa (Replaces: 10927303) |
|
Immediately | $ 643.55 | ||||
| 23 | A3030358 | Gasket-foam |
|
- | |||||
| 24 | 10973901 | Harness-mach |
|
- | |||||
| 25 | 10845504 | Cond. Fn Shrd |
|
- | |||||
| 26 | B5759645 | Gasket, Sealing |
|
- | |||||
| 27 | A3030359 | Gasket |
|
- | |||||
| 28 | M0223803 | Screw |
|
- | |||||
| 29 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 30 | M0253916 | Screw |
|
- | |||||
| 31 | B5759647 | Gasket-foam |
|
- | |||||
| 33 | 10883404 | Assy, Cond/pan E-ct |
|
- | |||||
| 34 | 10277010 | H V Box-e Ct |
|
- | |||||
| 35 | M0221523 | Screw, Shldr |
|
- | |||||
| 36 | M0108001 | Clamp, Tube |
|
- | |||||
| 37 | 10906508 | Insulation |
|
- | |||||
| 38 | 10906507 | Insulation |
|
- |
