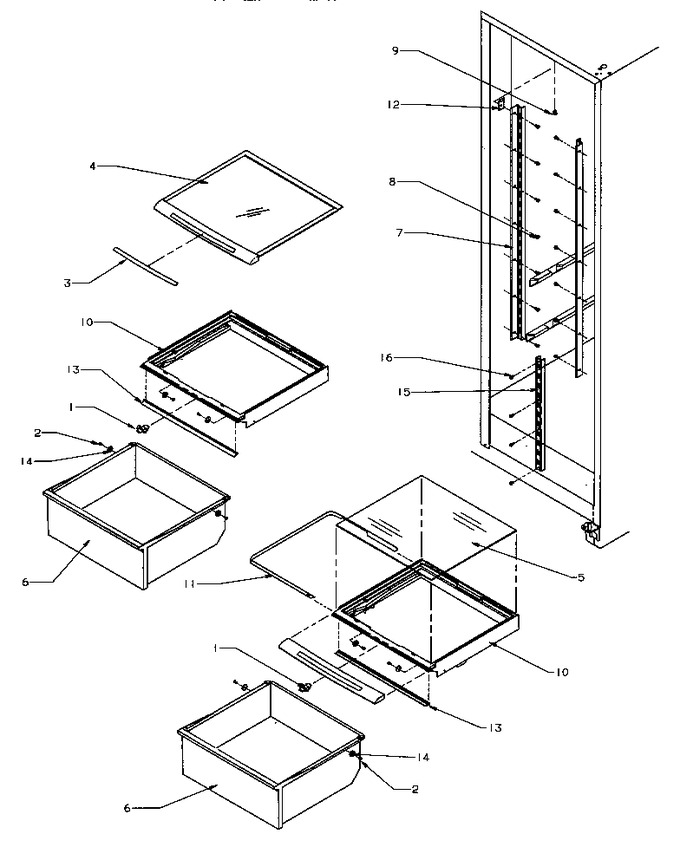

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10852501 | Slide, Crisper/deli |
|
- | |||||
| 2 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 3 | 10954010 | Insert, Shelf |
|
- | |||||
| 3 | 10872201 | Trim, Crisper Frt |
|
- | |||||
| 4 | 10783101 | Shelf- Top Crisper |
|
- | |||||
| 5 | Y10370065 | Glass-shelf |
|
- | |||||
| 6 | 10783201 | Pan,crisper |
|
- | |||||
| 6 | 10783301 | Pan, Crisper |
|
- | |||||
| 7 | D7789808 | Ladder, Cantilever |
|
- | |||||
| 7 | D7789809 | Ladder, Cantilever |
|
- | |||||
| 8 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 9 | M0580007 | Grommet, Screw |
|
- | |||||
| 10 | 10782901 | Frame,crisper |
|
- | |||||
| 10 | 10783001 | Frame-crisper |
|
- | |||||
| 11 | 10882701 | Band, Crisper |
|
- | |||||
| 11 | 10882702 | Band-crisper |
|
- | |||||
| 12 | C8992301 | Bracket |
|
- | |||||
| 13 | 10968801 | Seal-crisp Front |
|
- | |||||
| 14 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 15 | D7599003 | Ladder, Center |
|
- | |||||
| 16 | M0230923 | Screw |
|
- | |||||
| NI | 10882802 | Ass`y, Crisp Frame |
|
- | |||||
| NI | 10882801 | Assy, Crisper Frame |
|
- |
