SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, Crisper Assemblies & Acs


04 - Drain System, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves And Light


07 - Ice Bucket Auger, Im & Im Parts


08 - Ice Maker/control Assy


09 - Ice-water Cav/elec Brkt Assy/toe Grille


10 - Machine Compartment


11 - Ref Door


12 - Ref/fz Shelves, Lights, And Hinges

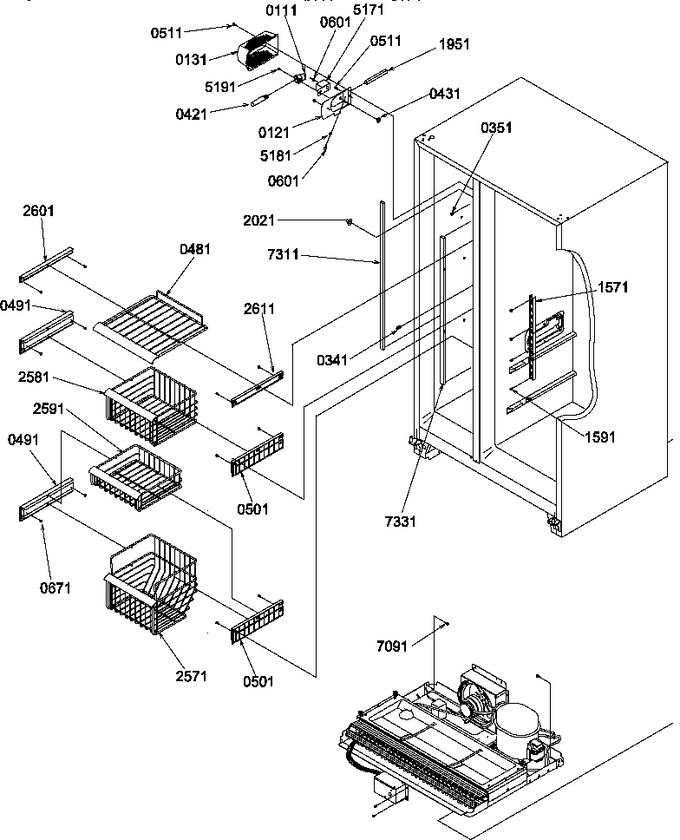

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12011903		Basket, 11`` Freezer		Appelez-nous	-
21	12011803		Basket, 7`` Freezer		Appelez-nous	-
31	12011703		Basket, 3`` Freezer		Appelez-nous	-
35	12373101		Ladder, Center		Appelez-nous	-
41	12012803		Rail, L. Dbl Shelf		Appelez-nous	-
51	10991403		Rail-r Shelf		Appelez-nous	-
51	D7844902		Socket Cover		Appelez-nous	-
55	M0238636		Screw-sm		Appelez-nous	-
61	M0320910		Term		Appelez-nous	-
71	M0213129		Screw		Appelez-nous	-
85	M0322202		Tie Wire		Appelez-nous	-
89	A4539626		Pop Rivet		Appelez-nous	-
95	M0580007		Grommet, Screw		Appelez-nous	-
111	D7845102		Socket, Lamp		Appelez-nous	-
121	D7845204		Plate - Lt Socket		Appelez-nous	-
131	D7786602		Shield, Light		Appelez-nous	-
143	A3189346		Gasket		Appelez-nous	-
159	10250002		Cover, Wire		Appelez-nous	-
159	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
163	A3189347		Gasket		Appelez-nous	-
165	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
175	A4554813		Snap Bushing		Appelez-nous	-
179	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
225	12012103		Shelf, Sld. Freezer		Appelez-nous	-
229	M0560005		Support		Appelez-nous	-
235	12013002		Rail, L. Dbl Shelf		Appelez-nous	-
245	10991802		Rail- R Double		Appelez-nous	-
255	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30

    View Diagram in Separate Window       Print Part List
