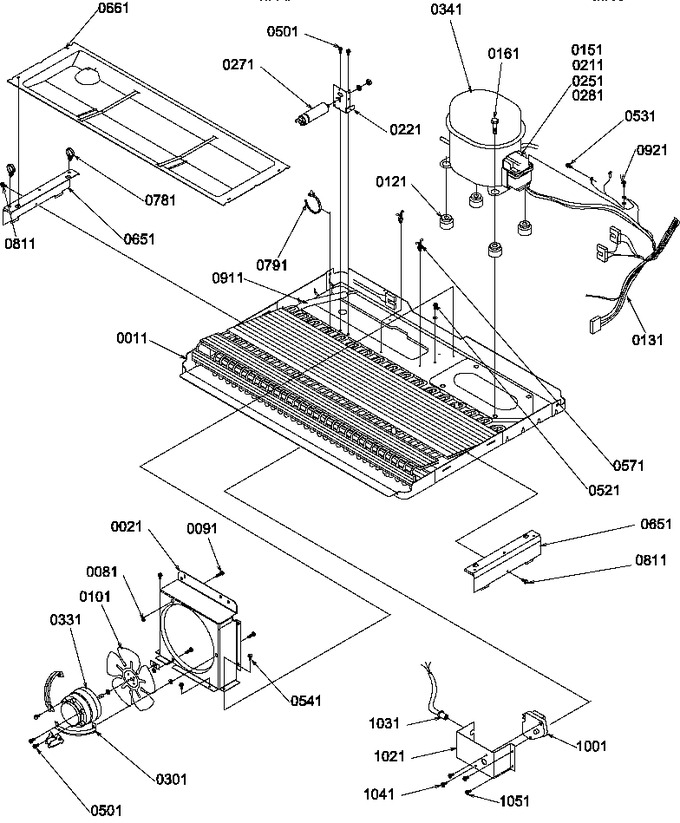

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | A3293505 | Bushing-snap |
|
- | |||||
| 9 | M0253916 | Screw |
|
- | |||||
| 11 | 10544108 | Assy,cond/pan-e Ct |
|
- | |||||
| 13 | M0322202 | Tie Wire |
|
- | |||||
| 15 | 10958302 | Capacitor |
|
- | |||||
| 17 | M0216705 | Screw |
|
$ 5.81 | |||||
| 19 | WP489128 | Screw (Replaces: M0253516) |
|
$ 11.40 | |||||
| 21 | 10602407 | Shroud, Cond. Fan |
|
- | |||||
| 23 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 25 | 10378302 | Cover-terminal |
|
- | |||||
| 27 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 29 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 43 | A4539601 | Pop Rivet |
|
- | |||||
| 45 | 10496501 | Kit,shroud/brkt Sound |
|
- | |||||
| 59 | DC61-40081A | Tie, Wire (Replaces: M0585401) |
|
$ 0.94 | |||||
| 75 | D7846903 | Motor-condenser (230 Vac,50/60 |
|
- | |||||
| 81 | M0501501 | Grommet |
|
- | |||||
| 85 | 12020102 | Compressor, (220/230 Vac) |
|
- | |||||
| 91 | M0238859 | Screw, Shoulder |
|
- | |||||
| 101 | 10518702 | Blade, Fan |
|
- | |||||
| 121 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 131 | 12008102 | Harness, Mc |
|
- | |||||
| 139 | 10495702 | Brkt, Drain Pan Mtg. |
|
- | |||||
| 143 | A0329833 | Insulation |
|
- | |||||
| 149 | 10507903 | Pan, Drain |
|
- | |||||
| 151 | 10628501 | Spring, Term Cover |
|
- | |||||
| 153 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 7.30 | |||||
| 161 | M0221523 | Screw, Shldr |
|
- | |||||
| 211 | 10377016 | Overload |
|
- | |||||
| 221 | B5696108 | Brkt, Line Filter |
|
- | |||||
| 233 | 10129308 | Timer-defrost 220/240 Vac 50/6 |
|
- | |||||
| 245 | M0223803 | Screw |
|
- | |||||
| 251 | 10097206 | Relay |
|
- | |||||
| 253 | 10877004 | Bracket, Timer |
|
- |
