Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10876107W Assy, Ref Dr Fm (white) Appelez-nous -
14 12102801 Rod-retainer Appelez-nous -
21 10861401 Liner-ref Dr Appelez-nous -
31 B0523563 Insulation Ft. K Appelez-nous -
33 R0181181 Closure, Door (wht)   (Replaces: 12113202) In-Stock Immediately $ 7.55

43 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

46 M0500706 Seal-o Ring Appelez-nous -
52 10111008 Bucket-igloo Appelez-nous -
62 10521814 Shelf-ref Door Appelez-nous -
63 10961001 Bushing, Door (wht) Appelez-nous -
81 10359708 Gasket, Door (w Ref) Appelez-nous -
95 M0219730 Screw Special Order $ 7.65

112 10520410 Shelf, Chiller Appelez-nous -
121 10154901 Frame-igloo Dairy Appelez-nous -
132 12102911 Track-dairy Door Appelez-nous -
133 M0310308 Plug, Button (wht) Appelez-nous -
142 12102912 Track-dairy Door Appelez-nous -
153 10161803 Door Stop Appelez-nous -
154 10953112 Insert, Trim(white) Appelez-nous -
156 12103001 Door-dairy Appelez-nous -
162 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

164 10953111 Insert, Trim(white) Appelez-nous -
172 10111809 Door, Igloo Appelez-nous -
182 10162101 Glide-igloo Door Appelez-nous -
184 10810508 Trim, Bottom Door W Ref Appelez-nous -
191 10165001 Tunnel-air Appelez-nous -
194 12139304 Handle, Door (white) Appelez-nous -
195 10202001 Clip, Retainer Appelez-nous -
201 10165101 Clip-tubular Appelez-nous -
204 10810308 Trim-w Top Ref Dr Appelez-nous -
206 10893201 Shelf, Dairy Appelez-nous -
208 M0216517 Screw Appelez-nous -
224 10810401 Trim-w Ctr Dr Appelez-nous -
254 10852214 Retainer-ref Trim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

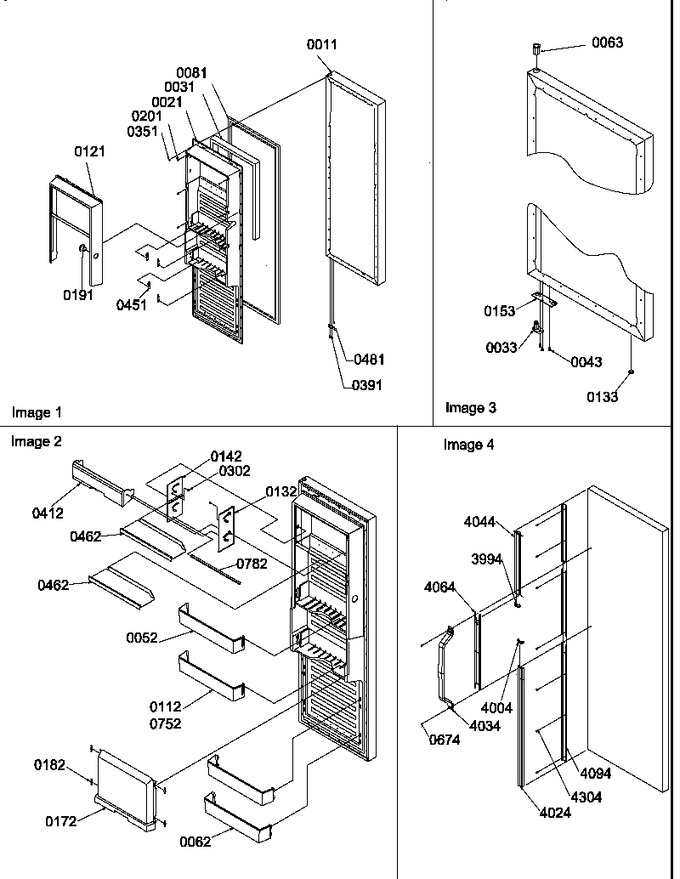

Diagram for SRD327S3W (BOM: P1312502W W)
