SELECT A DIAGRAM

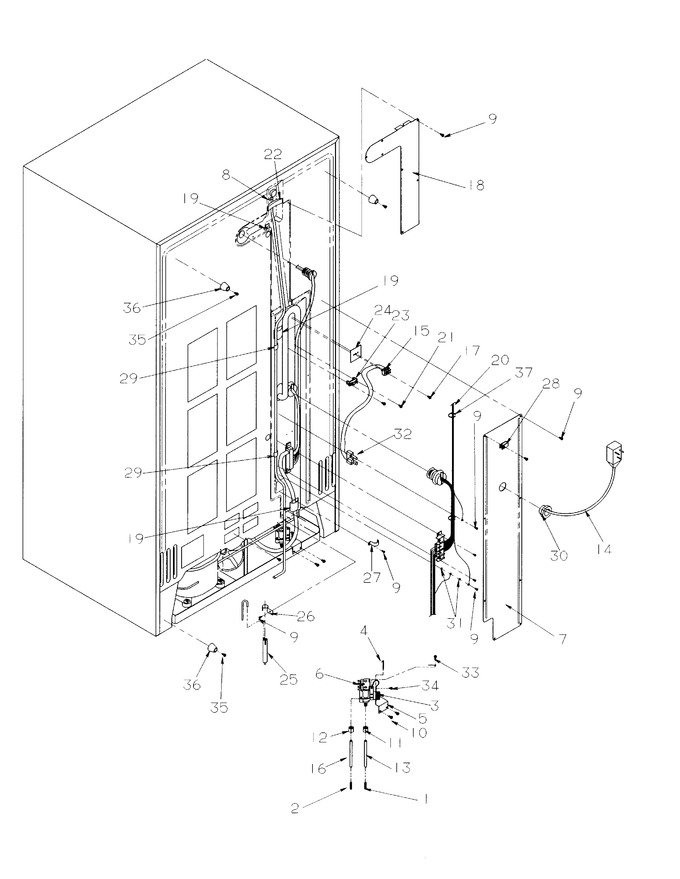

01 - Cabinet Back


02 - Crushed Ice Bucket


03 - Drain And Rollers


04 - Evaporator And Air Handling


05 - Freezer Door


06 - Freezer Door


07 - Freezer Shelving And Refrigerator Light


08 - Ice And Water Cavity


09 - Ice Maker


10 - Ice Maker Assy Parts


11 - Machine Compartment


12 - Refrigerator Door


13 - Refrigerator Door Hinge And Trim Parts


14 - Refrigerator Shelving And Drawers


15 - Refrigerator/freezer Controls & Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1055101		Spring, Antikink		Appelez-nous	-
2	A1055105		Spring, Anti Kink		Appelez-nous	-
3	10244902		Coupling		Appelez-nous	-
4	10798001		Clip, Water Valve		Appelez-nous	-
5	10496301		Brkt, Water Val.		Appelez-nous	-
6	D7827204		Valve, Water (220/240 Vac, 50				$ 113.44
7	10178404		O.c. Back Cover		Appelez-nous	-
8	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
9	M0227217		Screw, Sm		Appelez-nous	-
10	681390		Screw   (Replaces: M0251015)				$ 13.71
11	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
12	M0753003		Nut, Sleeve		Appelez-nous	-
13	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
14	B5669005		Cord, Power		Appelez-nous	-
15	C8969202		Terminal Block		Appelez-nous	-
16	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
17	M0219758		Screw		Appelez-nous	-
18	10178504		Cover - Wire		Appelez-nous	-
19	M0104102		Clip, Cord				$ 8.10
20	10786101		Harness, Cabinet		Appelez-nous	-
21	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
22	A3189336		Gasket, Foam		Appelez-nous	-
23	Y10203701		Strain Relief		Appelez-nous	-
24	10377602		Insulation, Term Block		Appelez-nous	-
25	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
26	10547001		Clip, Drier		Appelez-nous	-
27	B5794201		Clamp		Appelez-nous	-
28	M0108001		Clamp, Tube		Appelez-nous	-
29	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
30	A4554813		Snap Bushing		Appelez-nous	-
31	M0272803		Lock Washer		Appelez-nous	-
32	10786301		Jumper, Pwr Cord		Appelez-nous	-
33	M0233803		Screw, Tf		Appelez-nous	-
34	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
35	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
36	C8960601		Foot, Outer Case		Appelez-nous	-
37	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)				$ 8.21

    View Diagram in Separate Window       Print Part List
