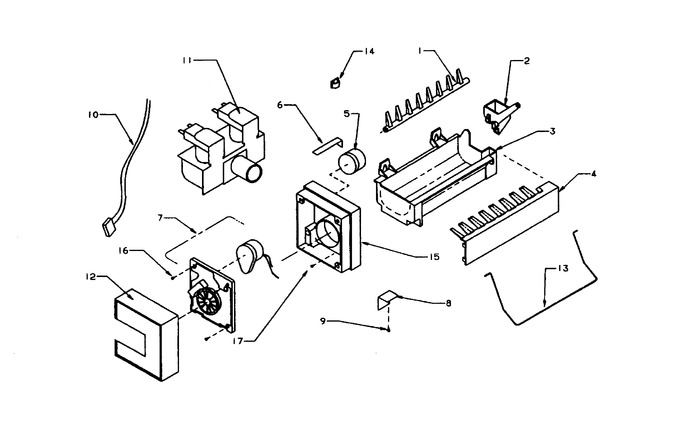

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 87.78 | |||||
| 2 | WP628356 | Inlet, Water (Replaces: R0156627) |
|
$ 53.75 | |||||
| 3 | WPW10190972 | Ice Maker, (220 V 50 Hz) (Replaces: R0156831) |
|
$ 177.49 | |||||
| 4 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 90.35 | |||||
| 5 | WP627985 | N/a See Notes-thermostat (Replaces: R0161060) |
|
$ 114.64 | |||||
| 6 | R0191004 | Wing Nut |
|
- | |||||
| 7 | R016724 | Module And Motor Assy |
|
- | |||||
| 8 | B8391801 | Bracket, I/m |
|
- | |||||
| 9 | M0211116 | Screw, Sm |
|
- | |||||
| 10 | D7824601 | Harness |
|
$ 57.59 | |||||
| 11 | D7827203 | Valve, Water (220/240 Vac, 50 |
|
- | |||||
| 12 | D7820401 | Cover Im |
|
- | |||||
| 13 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 14 | WP628379 | Clip, Thermal Fuse (Replaces: B8389801) |
|
$ 11.10 | |||||
| 15 | WP2195914 | Support (Replaces: R0183121) |
|
$ 109.80 | |||||
| 16 | R0186041 | Screw |
|
- | |||||
| 17 | R0186040 | Screw |
|
- | |||||
| NI | R0195019 | Alumalastic |
|
- |
