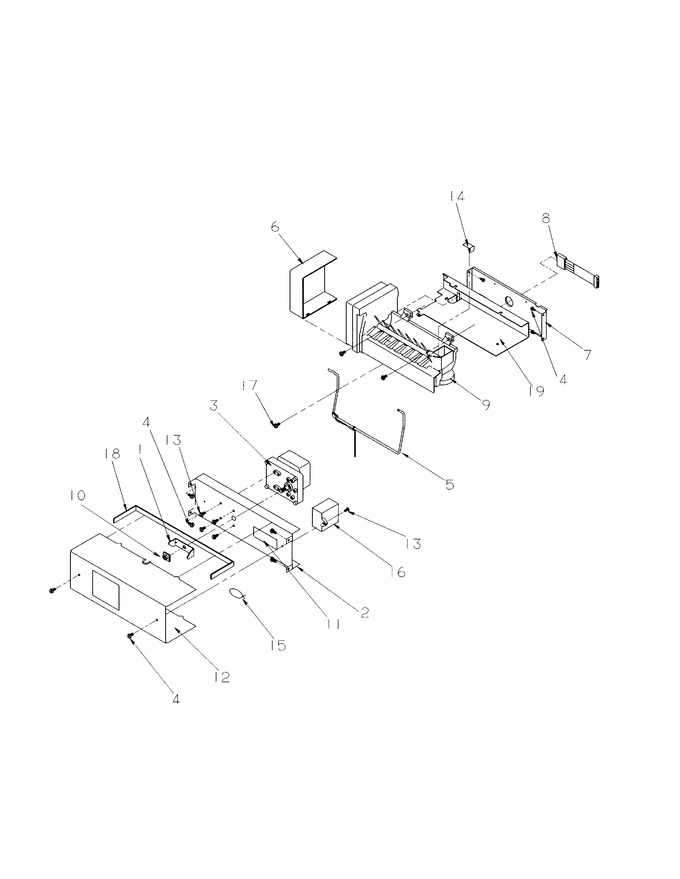

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10114901 | Driver (ice Maker) |
|
$ 1.61 | |||||
| 2 | D7749205 | Support,auger Motor |
|
- | |||||
| 3 | 10525202 | Motor, Auger (230 Vac, 50hz) |
|
- | |||||
| 4 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 5 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 6 | D7820401 | Cover Im |
|
- | |||||
| 7 | D7821003 | Support-im |
|
- | |||||
| 8 | D7843601 | Harness, Im |
|
- | |||||
| 9 | WPW10190972 | Ice Maker, (220 V 50 Hz) (Replaces: D7846302) |
|
$ 177.49 | |||||
| 10 | WPM0223101 | Nut, Locking (Replaces: M0223101) |
|
$ 8.06 | |||||
| 11 | A3030305 | Gasket-per Ft |
|
- | |||||
| 12 | D7788811 | Cover,auger Mtr-e Ct |
|
- | |||||
| 13 | WPW10139210 | Screw, Tc (Replaces: M0226528) |
|
$ 8.03 | |||||
| 14 | B5720301 | Clip |
|
- | |||||
| 15 | M0585203 | Tie, Wire |
|
- | |||||
| 16 | C8931609 | Capacitor (420 Vac) |
|
- | |||||
| 17 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 18 | B8386612 | Gasket |
|
- | |||||
| 19 | D7846201 | Shield Im |
|
- | |||||
| NOTE: | Xice Maker Assembly Is Not A Warranted Item. Individual Parts Are Warranted. See Page 34 For Parts List. |
|
- | ||||||
| NI | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 |
