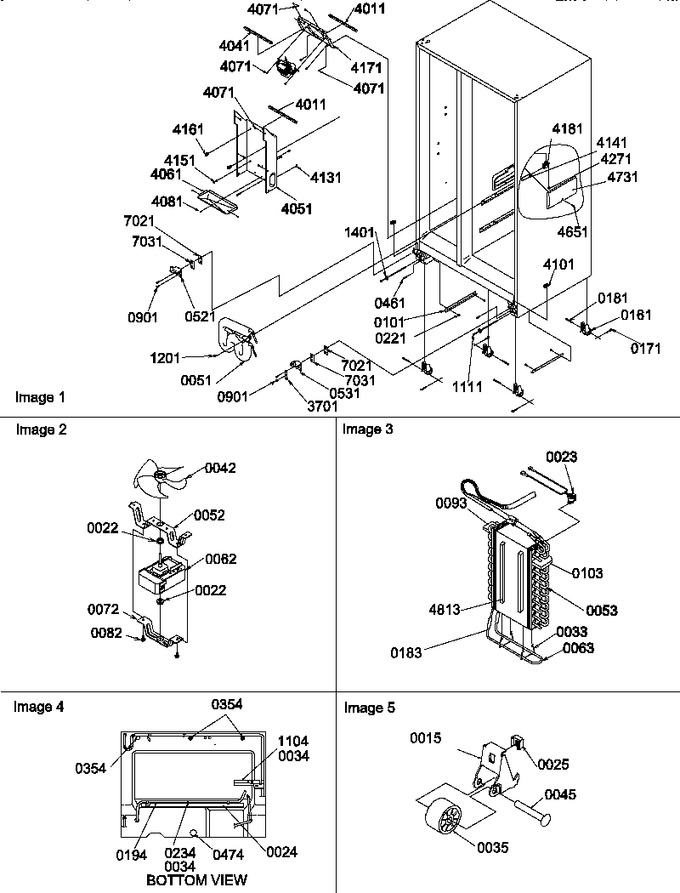

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 22 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 23 | R0161090 | Tstat (Replaces: 12017821) |
|
$ 110.66 | |||||
| 24 | 10906506 | Insul., Oc Bot |
|
- | |||||
| 25 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 33 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 34 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 35 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 8.27 | |||||
| 42 | WP12059901 | Fan-evap/5.250 Blade (Replaces: 12059901) |
|
$ 19.67 | |||||
| 45 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 51 | 10988502 | Tank-water |
|
- | |||||
| 52 | 10656102 | Brkt-mtr Mt/up |
|
- | |||||
| 53 | R0170057 | Assy,low Side |
|
- | |||||
| 62 | WP10513804 | Motor-evap Fanr0161090c, 50hz) (Replaces: 10513805) |
|
$ 256.76 | |||||
| 63 | WP10428406 | Heater, Evap. (230 Vac) (Replaces: 10428406) |
|
$ 100.32 | |||||
| 72 | 10909401 | Brkt, Mtr Mt |
|
- | |||||
| 82 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 93 | 10629601 | Block, Air Coil (left) |
|
- | |||||
| 101 | C8913701 | Support, Mc |
|
- | |||||
| 103 | 10629001 | Block, Air Coil (right) |
|
- | |||||
| 161 | C8956101 | Assy, Roller Bracket |
|
- | |||||
| 171 | M1200004 | Cotter Pin K |
|
- | |||||
| 181 | M1200202 | Pin K |
|
- | |||||
| 183 | 12325101 | Harness Evap Heater |
|
- | |||||
| 194 | 12142001 | Tube-drain |
|
- | |||||
| 221 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 234 | M0102303 | Clamp |
|
- | |||||
| 354 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 461 | M0204339 | Screw Bolt K |
|
- | |||||
| 474 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 521 | 10496107 | Kit,hinge Lh Btm(w) |
|
- | |||||
| 531 | 10496115 | Elec Bot Hng-wh E Ct |
|
- | |||||
| 901 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 1104 | 12021201 | Baffle, Air |
|
- | |||||
| 1111 | 10093301 | Screw, Adj Roller |
|
- | |||||
| 1201 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1401 | M0274067 | Washer, Nylon |
|
- | |||||
| 3701 | 12146901 | Brkt-adj Hinge |
|
- | |||||
| 4011 | B8386608 | Gasket |
|
- | |||||
| 4041 | B8386607 | Gasket (1=1ft.) |
|
- | |||||
| 4051 | 10893802 | Shield, Evap |
|
- | |||||
| 4061 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 4071 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4081 | 10098801 | Rivet |
|
- | |||||
| 4101 | R0181181 | Kit,dr Closure (Replaces: 12113501) |
|
Immediately | $ 7.55 | ||||
| 4131 | M0580002 | Grommet A |
|
- | |||||
| 4141 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 4151 | 10527401 | Clip, Evap |
|
- | |||||
| 4161 | 10623003 | Clip, Evaporator |
|
- | |||||
| 4171 | 10890202 | Evap Fan Shroud |
|
- | |||||
| 4181 | D7845102 | Socket, Lamp |
|
- | |||||
| 4271 | M0217224 | Screw |
|
- | |||||
| 4651 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4731 | Y10270101 | Cover-light |
|
- | |||||
| 4813 | A3030361 | Gasket |
|
- | |||||
| 7021 | 12146701 | Shim-bot Hinge |
|
- | |||||
| 7031 | 12146702 | Shim-bot Hinge |
|
- |
