SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice Bucket Auger And Ice Maker Parts


07 - Ice Maker/control Assy


08 - Ice-water Cav/elec Brkt Assy/toe Grille


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Light, And Hinges


12 - Shelves, Deli, And Crisper Assemblies

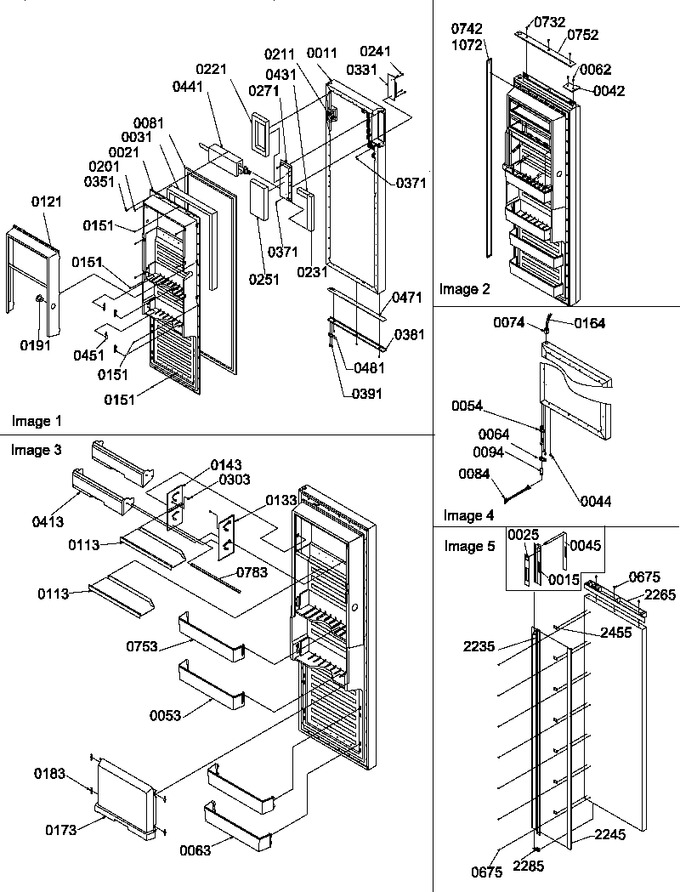

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10898209W		Assy, Ref Dr Fm (white)		Appelez-nous	-
15	12106401		Handle, Ref Dr (white)		Appelez-nous	-
21	10861502		Liner-ref Dr		Appelez-nous	-
25	10887804		Gasket-control		Appelez-nous	-
31	B0523590		Insul., Batt		Appelez-nous	-
42	10871301		Cap-w Hndl Top		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
45	R0150108		Assy, Keyboard (white)		Appelez-nous	-
53	10520410		Shelf, Chiller		Appelez-nous	-
54	12113401		Closure, Door (wht)		Appelez-nous	-
62	M0213517		Screw K		Appelez-nous	-
63	10521814		Shelf-ref Door		Appelez-nous	-
64	12113301		Closure, Door (wht)		Appelez-nous	-
74	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
81	10359708		Gasket, Door (w Ref)		Appelez-nous	-
84	M0335412		Connector-12 Pin		Appelez-nous	-
94	10561601		Assy, Hinge Pin		Appelez-nous	-
113	10883801		Shelf, Dairy		Appelez-nous	-
121	10519004		Frame-chiller		Appelez-nous	-
133	12102907		Track, Dairy Door		Appelez-nous	-
143	12102908		Track, Dairy Door		Appelez-nous	-
151	M0226705		Screw, Shoulder		Appelez-nous	-
164	12211605		Harness, Refr Door		Appelez-nous	-
173	10519208		Door, Chiller		Appelez-nous	-
183	10162101		Glide-igloo Door		Appelez-nous	-
191	12033201		Tunnel-air		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
211	B5629063		Insulation Batt		Appelez-nous	-
221	10271101		Insul. Batt.		Appelez-nous	-
231	B5629064		Insulation, Batt		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
251	B5612028		Insulation Batt		Appelez-nous	-
271	D7832904		Cover,p.c. Board		Appelez-nous	-
303	M0500706		Seal-o Ring		Appelez-nous	-
331	10866002		Board-lv Pc X		Appelez-nous	-
351	M0219730		Screw				$ 7.65
371	M0234114		Screw		Appelez-nous	-
391	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
413	12103001		Door-dairy		Appelez-nous	-
431	B5629065		Insulation, Batt		Appelez-nous	-
441	B0523585		Insulation Batt Per Foot		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
481	C8972405		Stop-w Door		Appelez-nous	-
675	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
753	10520412		Shelf, Chiller		Appelez-nous	-
783	12102801		Rod-retainer		Appelez-nous	-
2235	10887903		Ass`y, Ref Handle		Appelez-nous	-
2245	10945901		Insert, W Handle		Appelez-nous	-
2285	10871401		Cap-w Hndl Bot.		Appelez-nous	-
2455	10875801		Clip-handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
