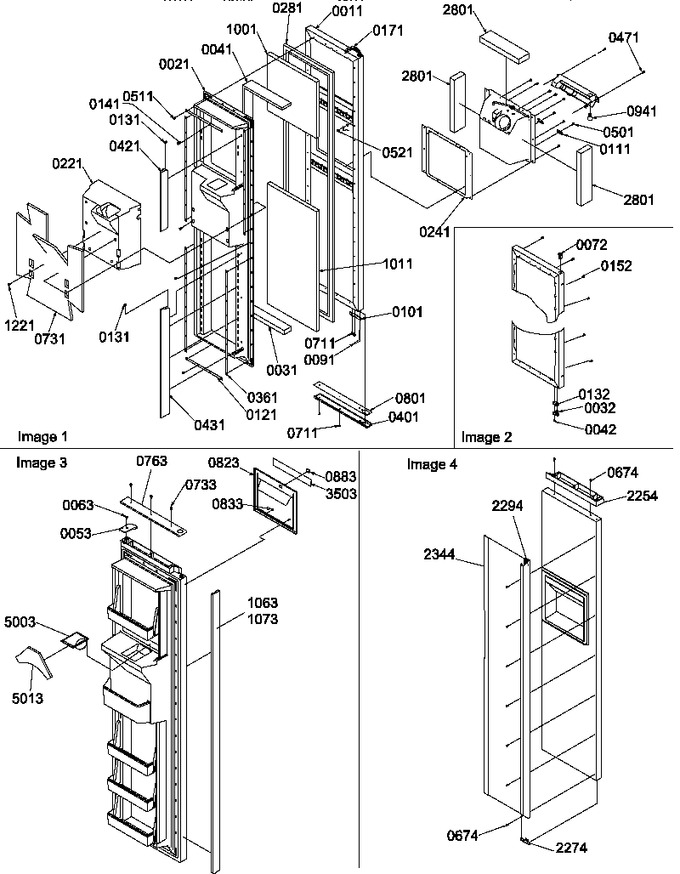

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881204W		Ass`y, Fz Dr (white)		Appelez-nous	-
21	10860801		Liner, Frz Dr I/w		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	R0181181		Closure-w Door   (Replaces: 12113201)			Immediately	$ 7.55
41	B0523562		Insul. By The Ft.		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
53	10871102		Cap-w Fz Hndl Top		Appelez-nous	-
63	M0213517		Screw K		Appelez-nous	-
72	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
91	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
101	C8972405		Stop-w Door		Appelez-nous	-
111	C8992901		Clip		Appelez-nous	-
121	C8982801		Retainer, Door Liner		Appelez-nous	-
131	10063102		Clip, Door Dike		Appelez-nous	-
141	M0226705		Screw, Shoulder		Appelez-nous	-
152	10281002		Grommet, Screw		Appelez-nous	-
171	12053606		Harness-fz Door		Appelez-nous	-
221	10870301		Insul.-i & W Cavity		Appelez-nous	-
241	D7791003		Gasket Cavity		Appelez-nous	-
281	10359709		Gasket (w Frz Dr)		Appelez-nous	-
361	D7828601		Retainer, Door Liner		Appelez-nous	-
421	10063207		Dike, I & W		Appelez-nous	-
431	10063208		Dike, I & W		Appelez-nous	-
471	M0216705		Screw				$ 5.81
501	M0216517		Screw		Appelez-nous	-
511	M0219730		Screw				$ 7.65
521	WP489399		Screw   (Replaces: M0232903)				$ 7.30
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
711	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
731	10941501		Insul, Batt		Appelez-nous	-
823	10986105		Facade-white		Appelez-nous	-
833	M0219614		Screw K		Appelez-nous	-
883	12036401		Cap-switch Wh		Appelez-nous	-
941	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
1001	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
1011	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
1221	M0311602		Plug, Button (white)		Appelez-nous	-
2274	10871202		Cap-w Fz Hndl Bot.		Appelez-nous	-
2294	12106206		Handle, Frz Dr (white)		Appelez-nous	-
2344	10945917		Insert, W Handle		Appelez-nous	-
2801	B0523596		Insul. By The Ft.		Appelez-nous	-
3503	10984607		Insert, W Facade		Appelez-nous	-
5003	10504101		Chute, Ice		Appelez-nous	-
5013	12044501		Gasket-ice Chute		Appelez-nous	-
