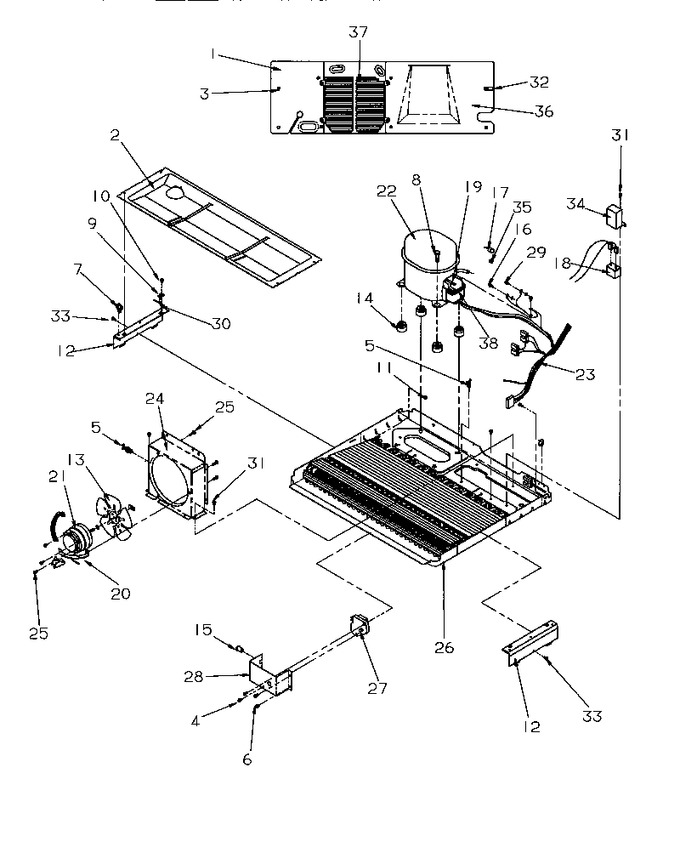

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10578804		Ass`y, L. Mc Back		Appelez-nous	-
2	10507902		Pan, Drain		Appelez-nous	-
3	M0201216		Screw - Sm		Appelez-nous	-
4	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
5	M0585402		Tie Wire		Appelez-nous	-
6	M0218118		Screw		Appelez-nous	-
7	M0118703		Clip, Guide		Appelez-nous	-
8	M0221523		Screw, Shldr		Appelez-nous	-
9	M0585601		Tab, Wire Tie		Appelez-nous	-
10	M0213529		Screw		Appelez-nous	-
11	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
12	10495701		Bracket, Drain Pan Mtg.		Appelez-nous	-
13	10518701		Blade, Fan		Appelez-nous	-
14	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
15	A3293505		Bushing-snap		Appelez-nous	-
16	WP489128		Screw   (Replaces: M0253516)				$ 11.40
17	10377015		Overload		Appelez-nous	-
18	WP65889-4		Capacitor   (Replaces: C8931604)			Immediately	$ 61.14
19	10757301		Cover, Terminal		Appelez-nous	-
20	10496501		Kit,shroud/brkt Sound		Appelez-nous	-
21	833697		Motor, Fan   (Replaces: 10884501)			Immediately	$ 88.15
22	W10309994		Kit,compressor-tpb1390yxa   (Replaces: 10927303)			Immediately	$ 643.55
23	610947202		Harness-machine Compartment		Appelez-nous	-
24	10602404		Kit,shroud/brkt Sound		Appelez-nous	-
25	M0223803		Screw		Appelez-nous	-
26	10580406		Cond/pan Ass`y(e Ct)		Appelez-nous	-
27	R0131577		Timer, Defrost (8 Hr)   (Replaces: 10530702)			Immediately	$ 51.24
28	10877003		Bracket, Timer		Appelez-nous	-
29	WP489399		Screw   (Replaces: M0232903)				$ 7.30
30	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
31	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
32	M0108001		Clamp, Tube		Appelez-nous	-
33	A4539601		Pop Rivet		Appelez-nous	-
34	10266402		Shield, Capacitor		Appelez-nous	-
35	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 124.93
36	10578705		Ass`y, R Mc Back		Appelez-nous	-
37	10470512		Mc Back-e Ct		Appelez-nous	-
38	YB8358601		Bale Strap		Appelez-nous	-
