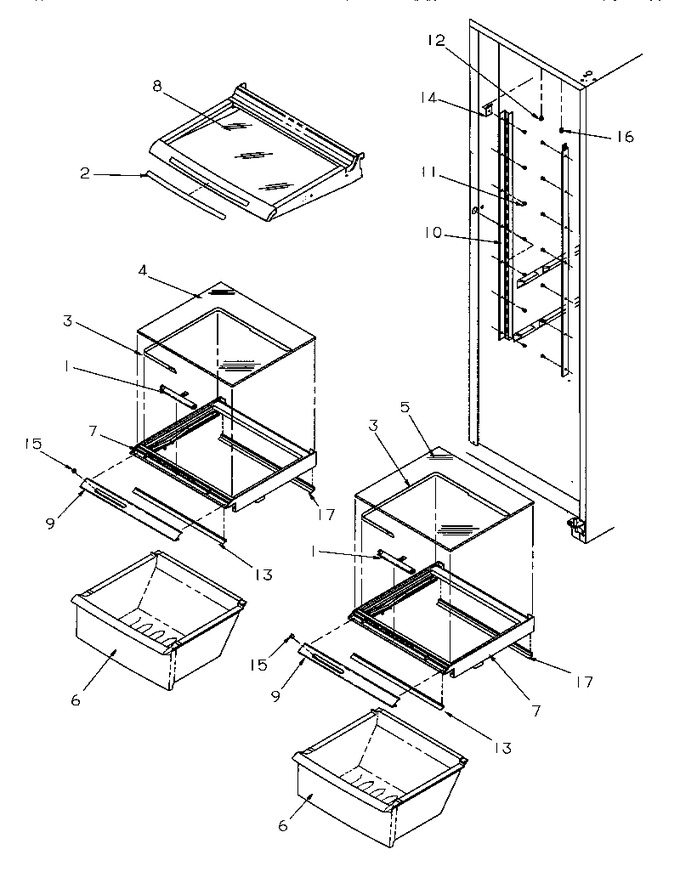

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7860603		Slide		Appelez-nous	-
2	10979704		Insert, Shelf		Appelez-nous	-
3	10882902		Band, Crisper		Appelez-nous	-
4	Y10370045		Glass, Shelf		Appelez-nous	-
5	10370046		Glass, Shelf		Appelez-nous	-
6	10471909		Pan-crisper		Appelez-nous	-
7	10470101		Frame, Crisper		Appelez-nous	-
7	10470102		Frame, Crisper		Appelez-nous	-
8	10898601		Shelf-full Sta		Appelez-nous	-
9	10873901		Trim-crisp Fr		Appelez-nous	-
10	D7789809		Ladder, Cantilever		Appelez-nous	-
10	D7789808		Ladder, Cantilever		Appelez-nous	-
11	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
12	M0580007		Grommet, Screw		Appelez-nous	-
13	10523402		Seal, Crisper Frt		Appelez-nous	-
14	C8992302		Brkt-control Cover		Appelez-nous	-
15	10038402		Knob - Crisper		Appelez-nous	-
16	M0581001		Grommet, Screw		Appelez-nous	-
17	D7718402		Seal Crisper		Appelez-nous	-
NI	10543739		Assy,lw Crisp Frame		Appelez-nous	-
NI	10543737		Assy, Up Crisp Frm		Appelez-nous	-
