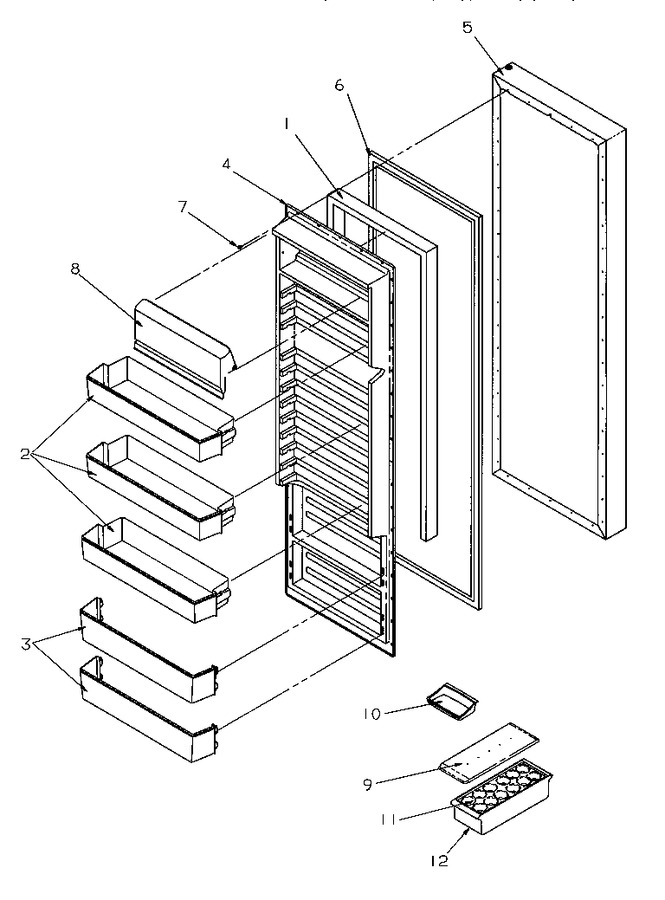

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523563		Insulation Ft. K		Appelez-nous	-
2	10937302		Bucket Ref.		Appelez-nous	-
3	10580105		Shelf, Ref Door		Appelez-nous	-
4	10946301		Liner, Ref Door		Appelez-nous	-
5	10937901W		Ref Dr Foam Assy		Appelez-nous	-
6	10359705		Gasket, Door (w Ref)		Appelez-nous	-
7	M0219730		Screw				$ 7.65
8	10418505		Door-dairy		Appelez-nous	-
9	10436404		Lid, Utility				$ 60.85
10	10310901		Tray, Butter		Appelez-nous	-
11	10436505		Tray, Egg		Appelez-nous	-
12	10423128		Bin-utility		Appelez-nous	-
