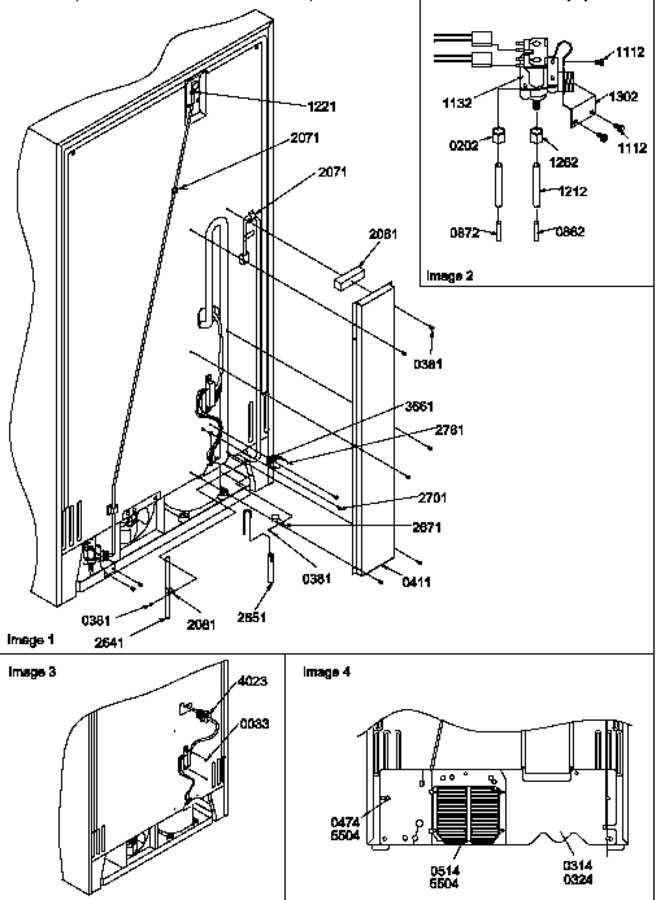

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
202	M0753003		Nut, Sleeve		Appelez-nous	-
314	12041705		Assy, Mc Back		Appelez-nous	-
324	M0219704		Screw		Appelez-nous	-
381	M0227217		Screw, Sm		Appelez-nous	-
411	10581305		Cover, Ht Exch		Appelez-nous	-
474	M0108001		Clamp, Tube		Appelez-nous	-
514	12039903		Back, M.c.		Appelez-nous	-
862	A1055101		Spring, Antikink		Appelez-nous	-
872	A1055105		Spring, Anti Kink		Appelez-nous	-
1112	681390		Screw   (Replaces: M0251015)				$ 13.71
1132	WPW10245167		Valve, Water   (Replaces: D7742204)				$ 120.73
1212	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
1221	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
1262	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
1302	10496302		Brkt, Water Valve		Appelez-nous	-
2061	A3189357		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
2081	M0585203		Tie, Wire		Appelez-nous	-
2641	10916505		Cord-power		Appelez-nous	-
2651	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
2671	10547001		Clip, Drier		Appelez-nous	-
2701	M0232317		Screw		Appelez-nous	-
2761	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
3661	10953201		Mount-cradle		Appelez-nous	-
4023	12140401		Harness-outer Cab		Appelez-nous	-
5504	M0227217		Screw, Sm		Appelez-nous	-
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
