Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10876202W Assy Frz. Dr Fm Appelez-nous -
21 10861002 Liner-i&w Fz Dr Appelez-nous -
33 R0181181 Closure-w Door   (Replaces: 12113201) In-Stock Immediately $ 7.55

41 12032801 Insul-i & W Cavity Appelez-nous -
43 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

61 M0216517 Screw Appelez-nous -
63 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

71 D7791003 Gasket Cavity Appelez-nous -
81 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

91 B0523563 Insulation Ft. K Appelez-nous -
101 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

123 M0310308 Plug, Button (wht) Appelez-nous -
151 Y00000000 See Note Elec Brkt Assy -- (for Parts Breakdown See Pages 10 & 11 Image 2) Appelez-nous -
153 10161803 Door Stop Appelez-nous -
171 10952102 Harness-fz Door Appelez-nous -
181 10359702 Gasket (w Frz Dr) Appelez-nous -
211 C8982801 Retainer, Door Liner Appelez-nous -
221 D7828601 Retainer, Door Liner Appelez-nous -
251 Y00000000 See Note W Cavity Assy -- (for Parts Breakdown See Pages 10 & 11 Image 1) Appelez-nous -
291 C8992901 Clip Appelez-nous -
301 M0219730 Screw Special Order $ 7.65

321 10940701 Insul-disp Batt Appelez-nous -
331 W10857122 Light Bulb   (Replaces: M0360001) In-Stock Immediately $ 14.52

351 12016905 Insul, Batt Appelez-nous -
361 12016906 Insul, Batt Appelez-nous -
1221 M0311601 Plug, Button Appelez-nous -
1682 10810507 Trim, Bottom Door W Frz Appelez-nous -
1702 12139301 Handle, Door (white) Appelez-nous -
1722 10810307 Trim-w Top Fz Dr Appelez-nous -
1752 10810601 Trim, W Ctr I & W Dr Appelez-nous -
1792 R9800670 Screw, Mounting   (Replaces: M0223230) Special Order $ 10.58

1822 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

1832 10852212 Ret-up Fz Trim Appelez-nous -
1842 10852215 Ret-lw Fz Trim Appelez-nous -
2801 B0523596 Insul. By The Ft. Appelez-nous -
3062 10953111 Insert, Trim(white) Appelez-nous -
3072 10953112 Insert, Trim(white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

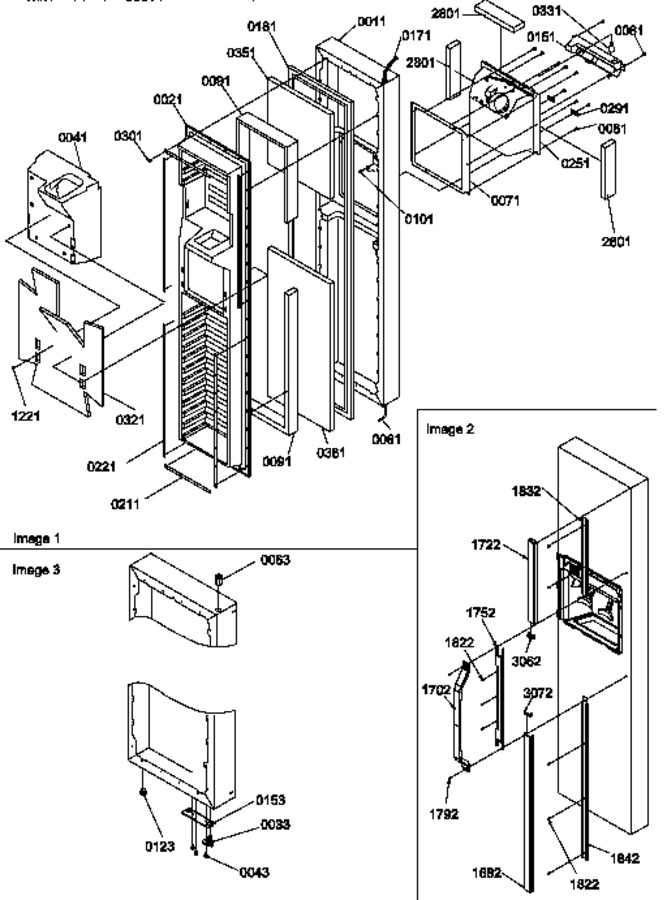

Diagram for SSD21SW (BOM: P1193908W W)
