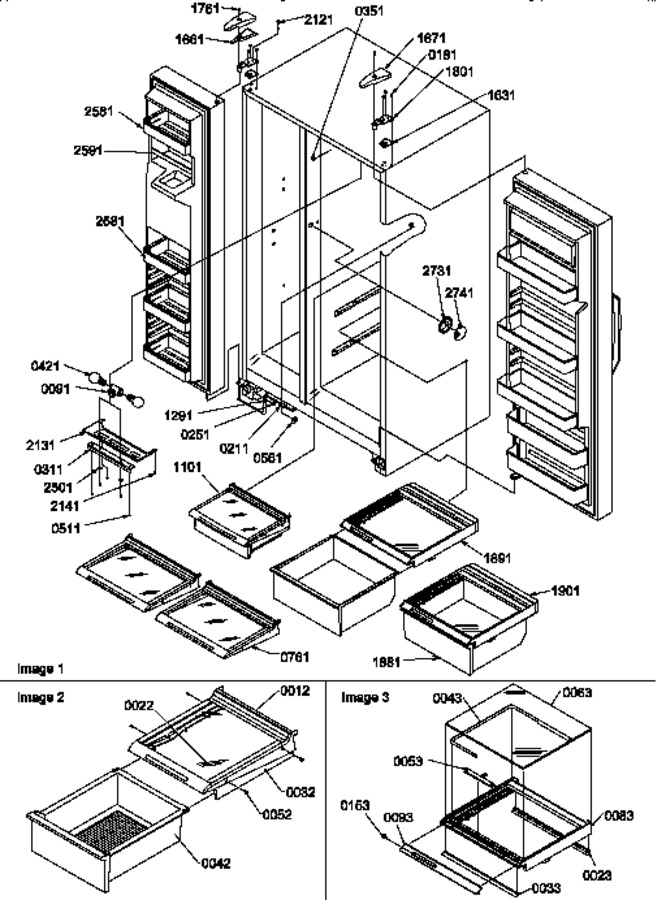

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10898602 | Shelf-full Sta |
|
- | |||||
| 22 | 12027102 | Glide, L Deli |
|
- | |||||
| 23 | D7718402 | Seal Crisper |
|
- | |||||
| 32 | 12027202 | Glide, R Deli |
|
- | |||||
| 33 | 10523402 | Seal, Crisper Frt |
|
- | |||||
| 42 | D7710524 | Pan, Deli |
|
- | |||||
| 43 | 10882902 | Band, Crisper |
|
- | |||||
| 52 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 53 | D7860603 | Slide |
|
- | |||||
| 63 | Y10370045 | Glass, Shelf |
|
- | |||||
| 63 | 10370046 | Glass, Shelf |
|
- | |||||
| 83 | 10470101 | Frame, Crisper |
|
- | |||||
| 83 | 10470102 | Frame, Crisper |
|
- | |||||
| 91 | 12156201 | Socket, Dual Lamp |
|
- | |||||
| 93 | 10873912 | Trim-crisp Fr |
|
- | |||||
| 153 | 10038402 | Knob - Crisper |
|
- | |||||
| 181 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 211 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 251 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 311 | 10014717 | Shield, Light |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 561 | 12016501 | Deflector-air |
|
- | |||||
| 761 | 10898602 | Shelf-full Sta |
|
- | |||||
| 1101 | Y00000000 | See Note Deli Shelf Assy -- (for Parts Breakdown See Pages 12 & 13 Image 2) |
|
- | |||||
| 1291 | M0108001 | Clamp, Tube |
|
- | |||||
| 1631 | B8389007 | Shim, Top Hinge |
|
- | |||||
| 1661 | 10863601 | Foil-hng Cover |
|
- | |||||
| 1671 | 10849501 | Cover-w Hinge |
|
- | |||||
| 1761 | WP8281196 | Screw-mach (Replaces: M0202327) |
|
Immediately | $ 7.55 | ||||
| 1801 | 12077307 | Top Hinge-e Ct |
|
- | |||||
| 1881 | 10471909 | Pan-crisper |
|
- | |||||
| 1891 | 10543747 | Assy, Upr Crispr Frm |
|
- | |||||
| 1901 | 10543748 | Assy, Lwr Crisper Frame |
|
- | |||||
| 2121 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
Immediately | $ 14.72 | ||||
| 2131 | 10493202 | Cover, Ref. Light |
|
- | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2501 | M0270508 | Washer |
|
- | |||||
| 2581 | 10111209 | Bucket-frz Dr |
|
- | |||||
| 2591 | C8907235 | Retainer Pkg |
|
- | |||||
| 2731 | 10164702 | Control-air |
|
- | |||||
| 2741 | 10164812 | Grille-control |
|
- |
