Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 75871 Screw 8abx3/8`` Appelez-nous -
2 336884 Motor Appelez-nous -
3 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.77

4 329031 Hose Appelez-nous -
5 329032 Clamp Appelez-nous -
6 332446 Transition Appelez-nous -
7 333931 Seal-rear Cover Appelez-nous -
8 334559 Rear Cover Appelez-nous -
9 333930 Grommet Appelez-nous -
10 69364 Screw 10abx3/4`` Appelez-nous -
11 336887 Housing Appelez-nous -
12 336883 Disconnect Appelez-nous -
13 330263 Set Screw 5/16``-24x3/8`` Appelez-nous -
14 336885 Impellor Appelez-nous -
15 334558 Wire Clamp Appelez-nous -
16 333922 Inlet Ring Appelez-nous -
17 334437 Gasket-blower Appelez-nous -
18 336889 Blower Wire Harness Appelez-nous -

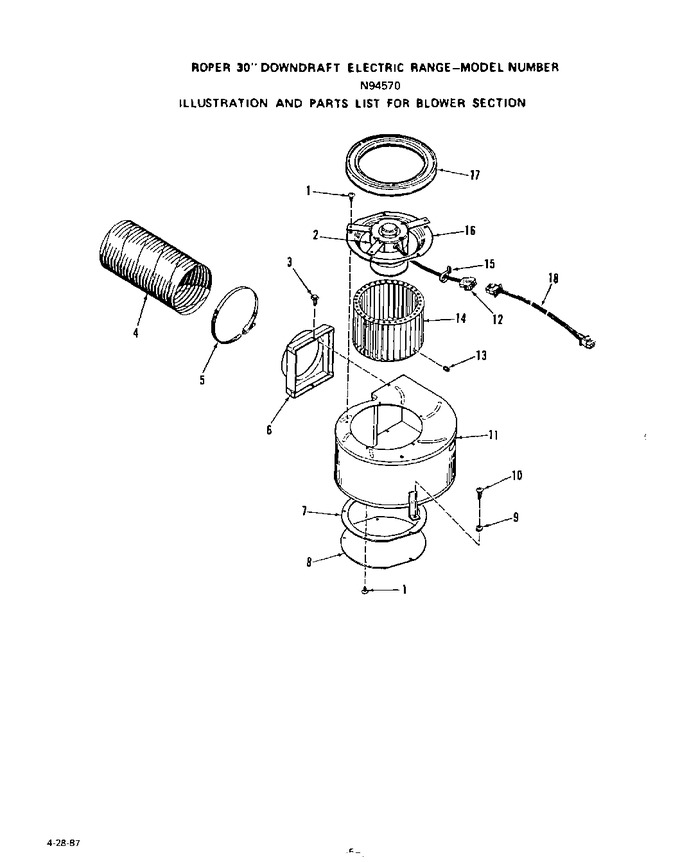

    View Diagram in Separate Window     Print Icon   Print Part List
