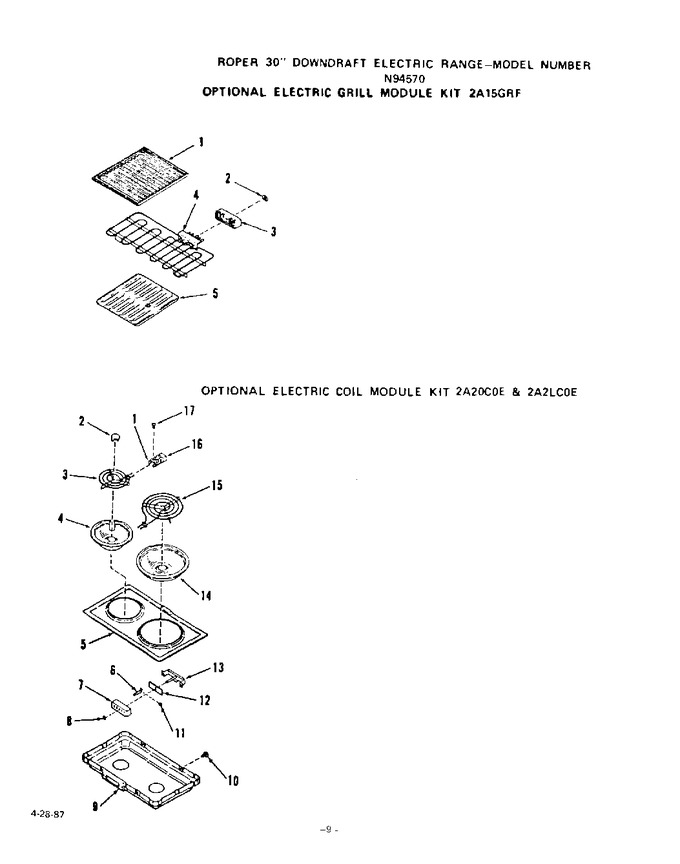

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 318872 Bracket-terminal Block (2 Req) Appelez-nous -
1 329027 Grate-grill (2 Req) Appelez-nous -
2 318586 Medallion (2 Req) Appelez-nous -
2 330332 Clip-push On Appelez-nous -
3 PS15-4BK 6`` Surface Element   (Replaces: 325510) In-Stock Immediately $ 35.96

3 330310 Terminal Block Appelez-nous -
4 WPW10196406 6`` Burner Bowl   (Replaces: 296481) In-Stock Immediately $ 12.05

4 333177 240 Volt Appelez-nous -
4 333178 208 Volt (optional) Appelez-nous -
5 329211 Chrome Appelez-nous -
5 330955 Almond Appelez-nous -
5 332382 Reflector-grill Support (2 Req) Appelez-nous -
6 310709 Terminal Pin (4 Req) Appelez-nous -
7 329024 Terminal Block Appelez-nous -
8 69831 Speed Nut Special Order $ 19.01

9 331609 Pan-module Appelez-nous -
10 232183 Screw 8-32x3/8`` Appelez-nous -
11 78565 Screw 8-32x3/16`` Appelez-nous -
12 310705 Insulator Appelez-nous -
13 329112 Bracket-terminal Block Appelez-nous -
14 WPW10196405 8`` Burner Bowl   (Replaces: 304969) In-Stock Immediately $ 15.56

15 PS26-4BK 8`` Surface Element   (Replaces: 325506) In-Stock Immediately $ 40.46

16 330031 Terminal Block W/wire Leads (2 Req)   (Replaces: 318960) In-Stock Immediately $ 17.93

17 299632 Screw 7-32x5/16`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
