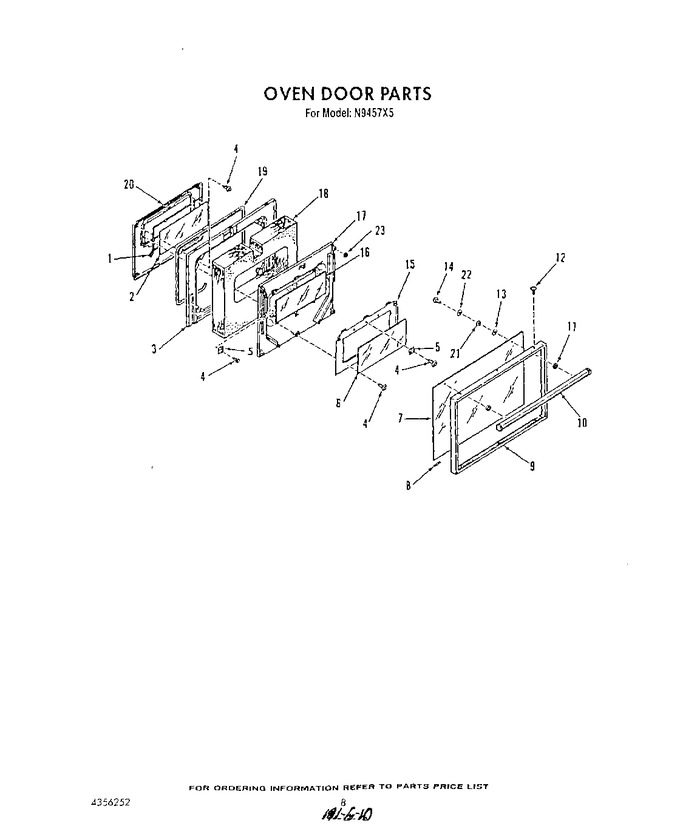

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4342634		Seal, Inner Glass		Appelez-nous	-
2	4343165		Glass, Inner Oven Door		Appelez-nous	-
3	4336704		Lining, Oven Door		Appelez-nous	-
4	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
5	4334791		Retainer		Appelez-nous	-
6	4334821		Glass, Intermediate		Appelez-nous	-
7	4337863		Glass, Outer Oven Door		Appelez-nous	-
8	4324217		Cushion (3)		Appelez-nous	-
9	4337864		Frame, Oven Door		Appelez-nous	-
10	4336828		Handle, Oven Door		Appelez-nous	-
11	4323997		Spacer, Handle		Appelez-nous	-
12	4332521		Screw No.10-32x1/2		Appelez-nous	-
13	4336868		Washer		Appelez-nous	-
14	4342665		Screw, No.10-32 X 3/4		Appelez-nous	-
15	4335753		Mounting Plate		Appelez-nous	-
16	4338251		Glass, Center		Appelez-nous	-
17	4338315		Retainer, Insulation		Appelez-nous	-
18	4354940		Insulation, Oven Door		Appelez-nous	-
19	4342564		Gasket, Oven Door		Appelez-nous	-
20	4337448		Panel, Inner Door		Appelez-nous	-
21	4336869		Spacer, Glass		Appelez-nous	-
22	4342666		Glass Retainer		Appelez-nous	-
23	4337618		Washer, Felt		Appelez-nous	-
