Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4336453 Griddle Appelez-nous -
1 4336005 Cover Appelez-nous -
1 4338182 Screw, No.6-20 X 5/16 Appelez-nous -
2 4336262 Cap, End Appelez-nous -
2 4336006 Handle, (left/right) Appelez-nous -
3 4336235 Screw, No. 6 X 1/4 Appelez-nous -
3 4343080 Backsplash Appelez-nous -
4 4343079 Support-backsplash Appelez-nous -
5 W10850756 Screw, No.10-16 X 7/16   (Replaces: 4343086) Special Order $ 7.38


    View Diagram in Separate Window     Print Icon   Print Part List

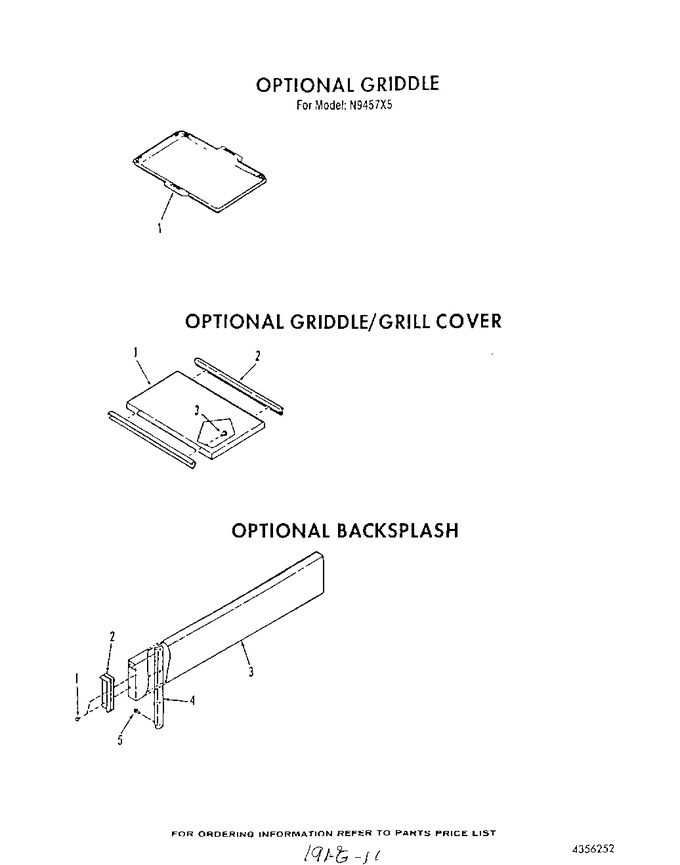

Diagram for N9457X5
